Bosch DBB67AM60B, Integrated Design Hood
Available to Order
Year Warranty
Key Features
- Colour: Black
- Noise Level: 63 dB
- Dimensions: W:597.0 H: D:298.0 mm
Easy to Clean
The hood’s sophisticated design makes it easy to clean. Both the glass panel and the black hood and chimney have smooth, uniform surfaces that are effortless to clean. Keeping the lower hood area clean is also easy. The screws are covered over, making sharp-edged recesses a thing of the past. And you can simply wash the metal grease filter in the dishwasher.

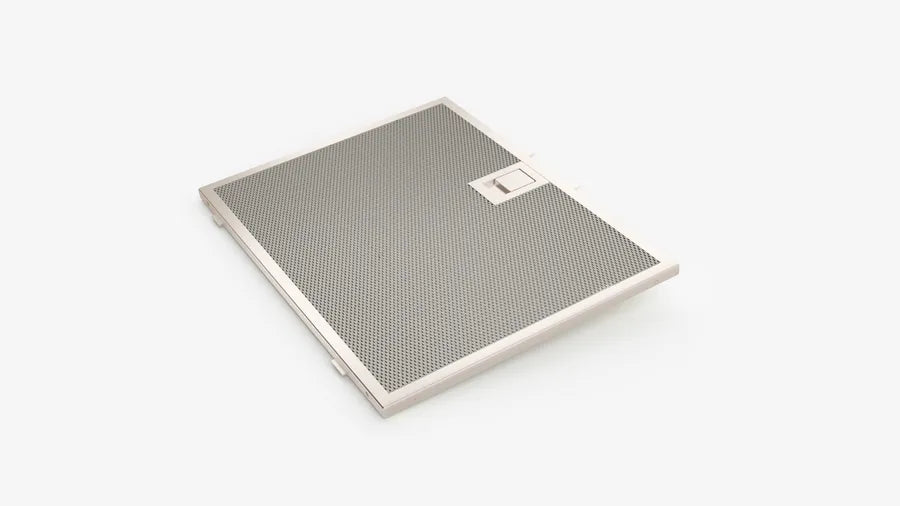

Metal Grease Filter
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.

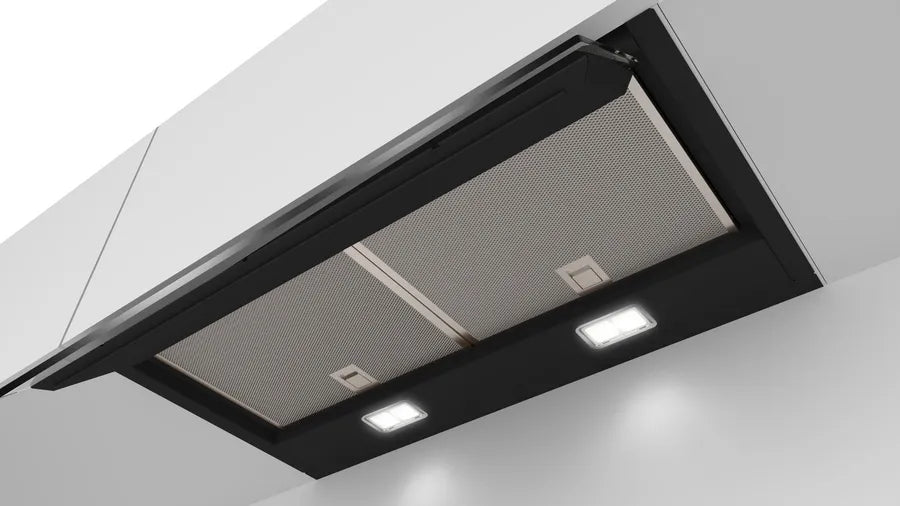

LED illumination
LED lights have an impressive service life with several thousand of operating hours. Thanks to their especially low power consumption they use way less electricity than comparable conventional halogen spots. The white LED lights provide a clear and bright illumination whilst cooking.

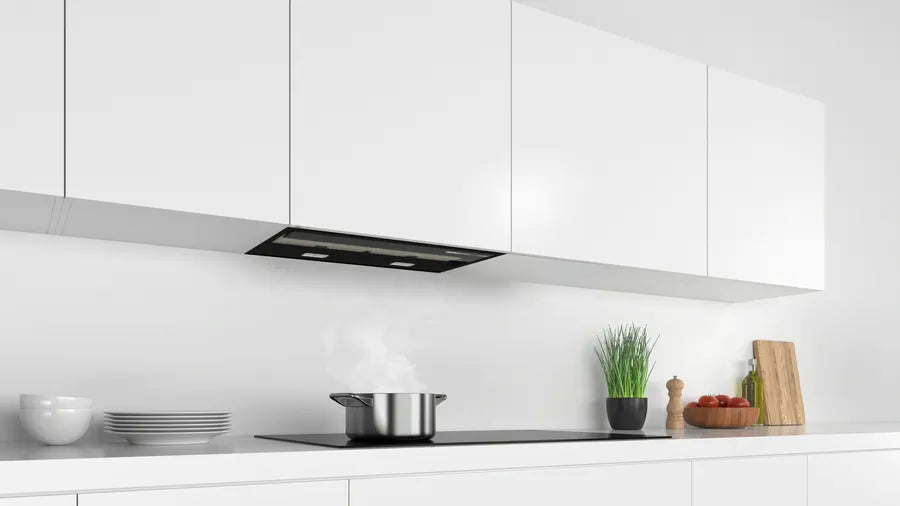

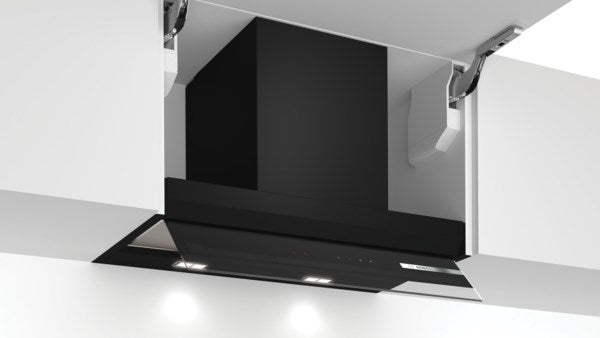

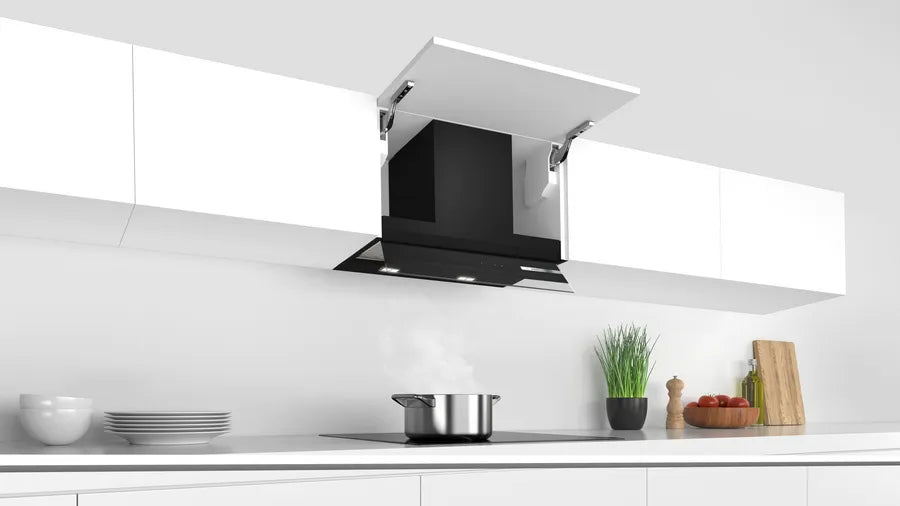

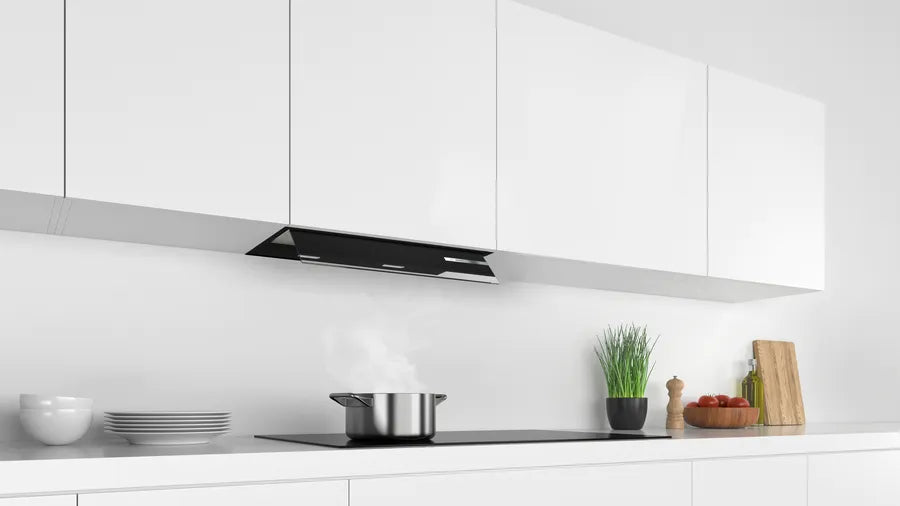

Seamless Integration
Do you prefer a minimalist design? Thanks to flush installation in an upper cabinet without the bottom, the new integrated design hood is almost invisible when deactivated. The glass control panel can also be folded under the hood when it`s not in use, so it’s tucked away out of sight.
Easy to Clean
Metal Grease Filter
LED illumination
Seamless Integration
Key Points From Manufacturer
Variant 60 cm wide Installation: Cupboard 60 cm Suitable for ducted or recirculating operation For recirculated extraction various recirculation kits are available as optional accessories. Design Flush-fitted installation for a...
- Silent: maximum extractor performance with minimal noise.
- An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time.
- Expanded storage space: the hood can hold up to 10 kg on each side.
- Glass panel with integrated TouchSelect control: an automatic recognition of the glass panel position enables automatical operation of power level and light.
- Easy to clean: thanks to the well thought-out design, such as smooth surfaces, the hood is easy to clean.
General
| Manufacture name | Bosch |
| Colour Name | Black |
| Category name | Cooking > Hoods > Integrated Hoods |
| Consumer item width | 597 mm |
| Consumer item depth | 298 mm |
Key Features
Defrost Type
Capacity
Efficiency
| Energy Efficiency Class | B |
| Noise Level | 63 dB |
Programmes
More
Variant
- 60 cm wide
- Installation: Cupboard 60 cm
- Suitable for ducted or recirculating operation
- For recirculated extraction various recirculation kits are available as optional accessories.
- Flush-fitted installation for a seamless integration in wall cupboards.
- Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side.
- Glass panel with touch control for an easy operation and enhanced vapor capture.
- Extraction and lighting are automatically turned on and off by opening and closing the glass panel.
- Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel.
- Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space.

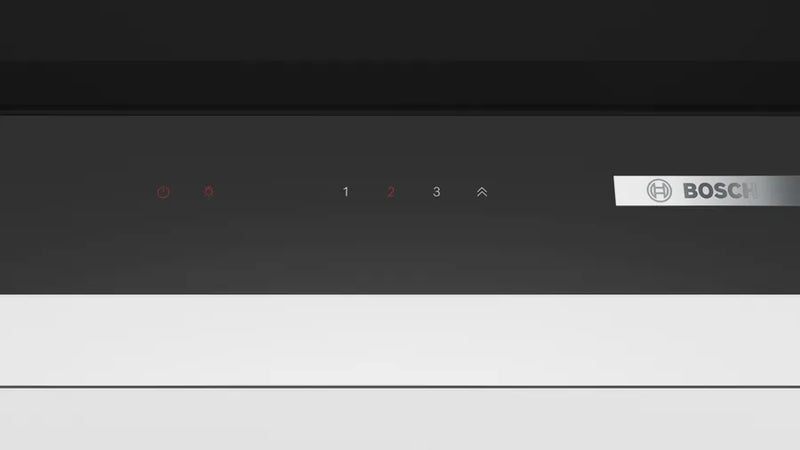

- Electronic control via TouchControl
- 3 power levels & intensive setting
- Softlight dimmer function
- 2 x 2 W LED lights
- Colour Temperature: 3500 K
- Light Intensity: 451 lux
- Automatic intensive revert
- Automatic intensive revert (6mins)
- Steel filter cover
- 2 removable metal grease filter cassettes
- Easy to clean smooth surfaces and materials.
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use460m³/h
- Intensive749 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:63dB(A) re 1 pW
- Intensive:73 dB(A) re 1 pW
- Noise max. Normal Level: Noise, max. speed in normal us: 63 dB dB*
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:451m³/h
- Intensive:652m³/h
- Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
- Intensive:74 dB(A) re 1 pW

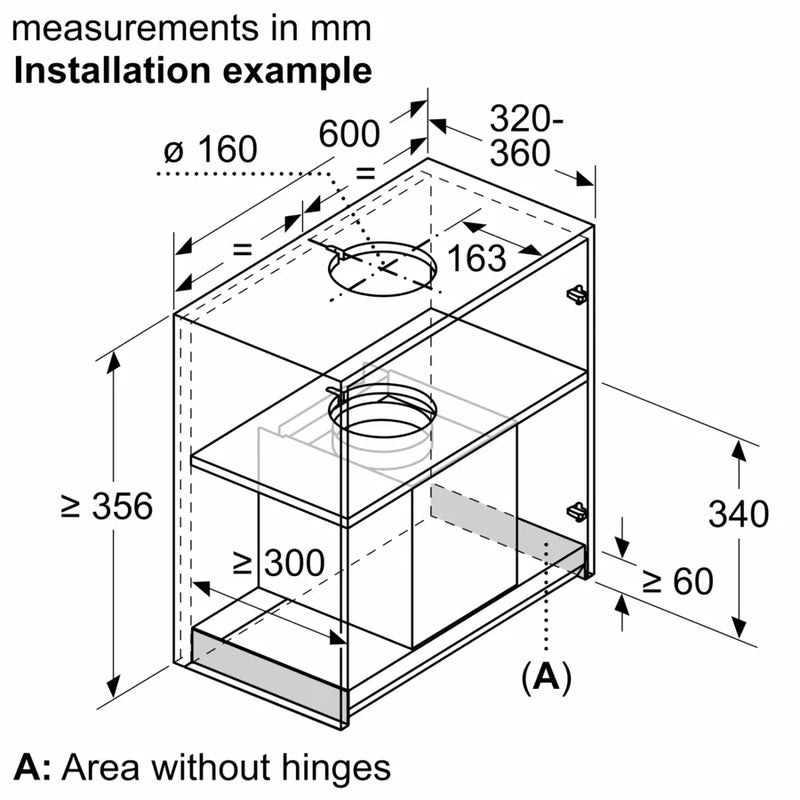

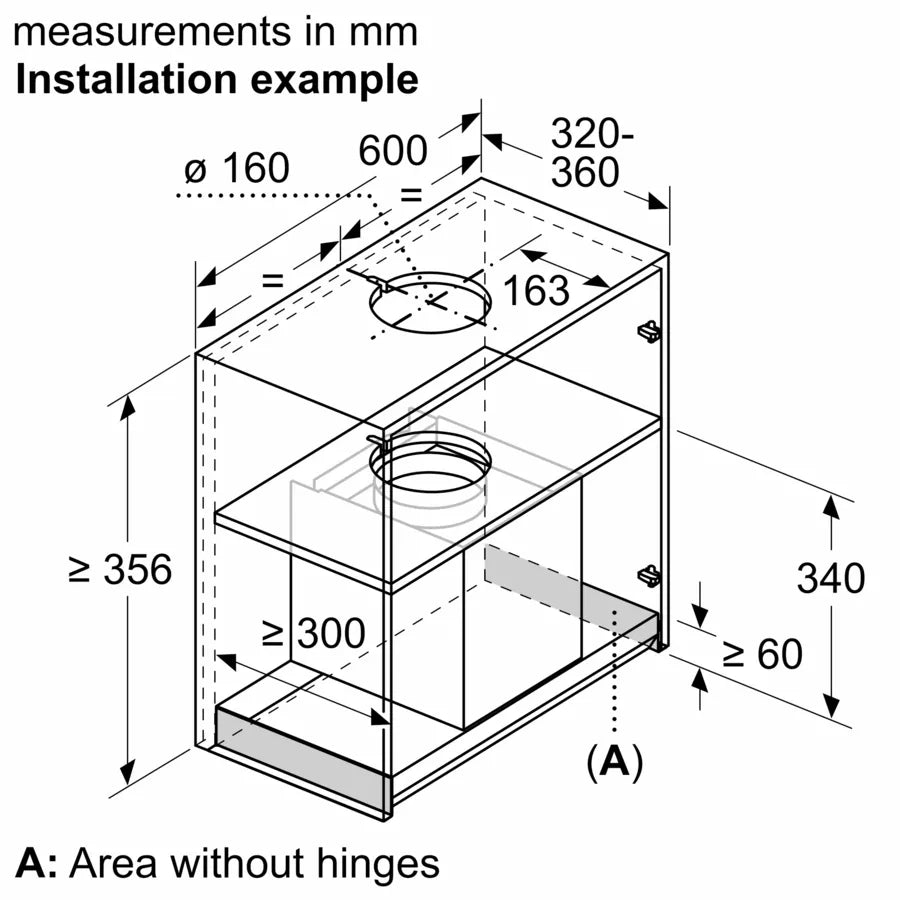

- Installation system: IDH comfort installation
- Suitable for installation in bottomless wall cupboards.
- Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
- For installation in higher wall cupboards chimney extensions are available as optional accessories.
- Chimney extensions are compatible with the available recirculation kits.

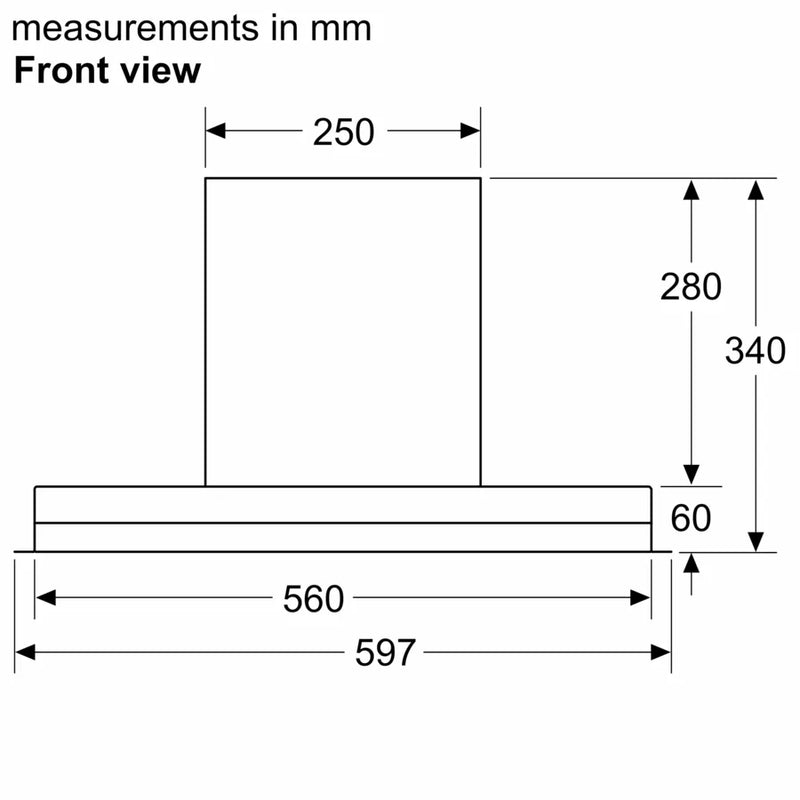

- Dimensions (HxWxD): 340 x 597 x 298 mm
- Built-in dimensions (HxWxD): 340 x 560 x 300 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Back-pressure flap: Yes
- Electrical cable length 1.3 m

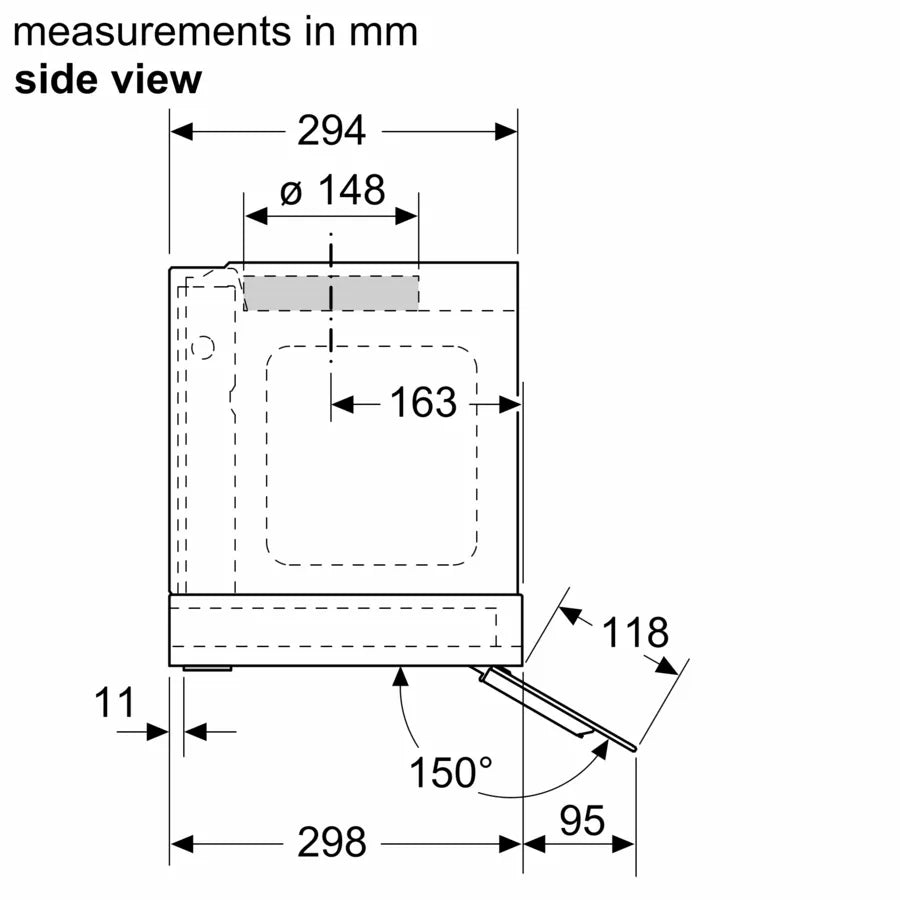

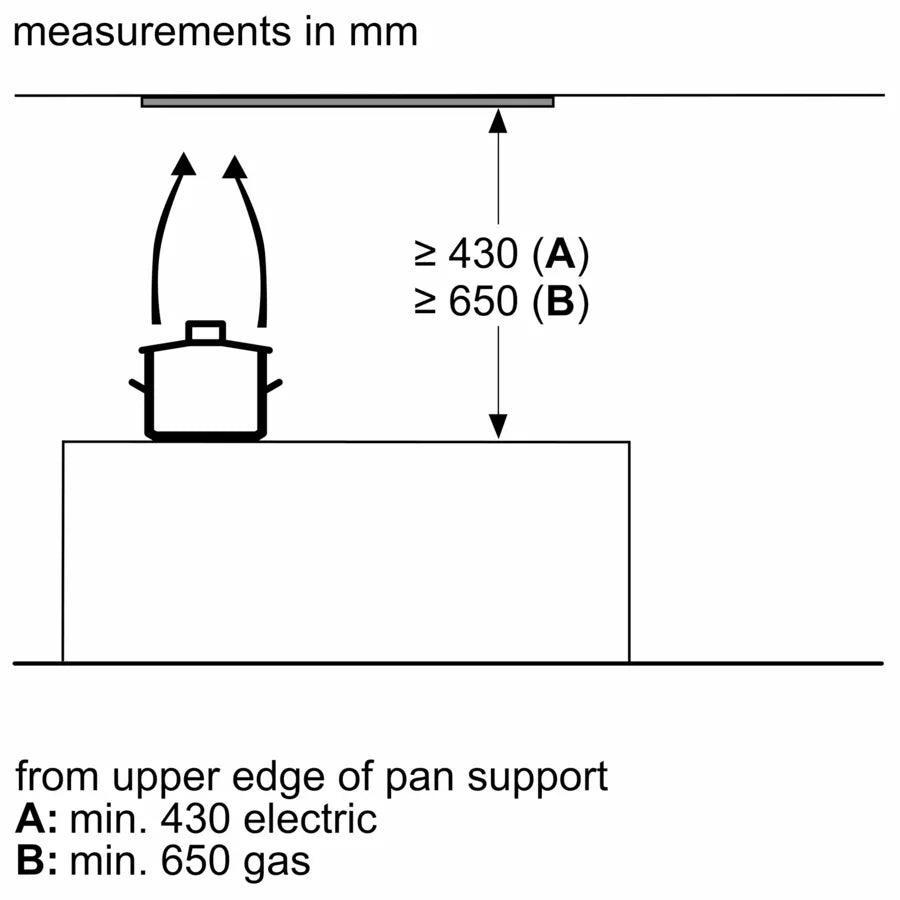

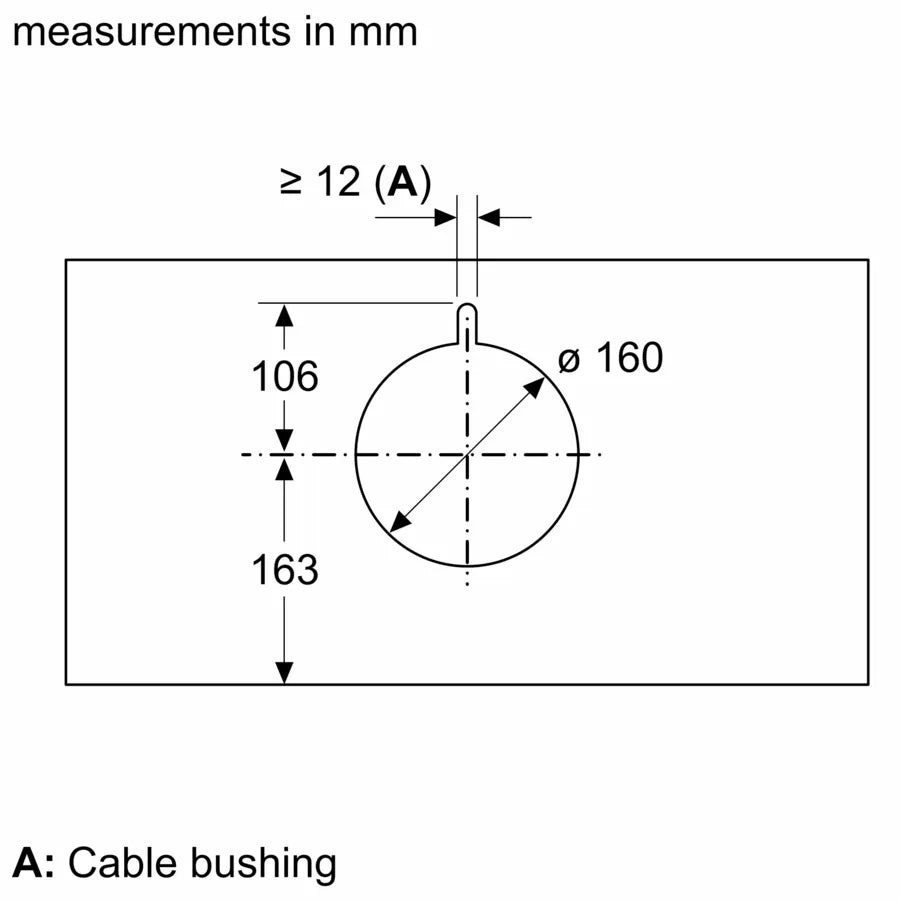

- Please reference the built-in dimensions provided in the installation drawings
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 62.7 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Power rating: 256 W
