Bosch DBB83BC60B, Integrated Design Hood
Available to Order
2 Year Warranty
Key Features
- Colour: Black
- Noise Level: 65 dB
- Warranty: 2 Years
- Dimensions: W:760.0 H:340.0 D:287.0 mm

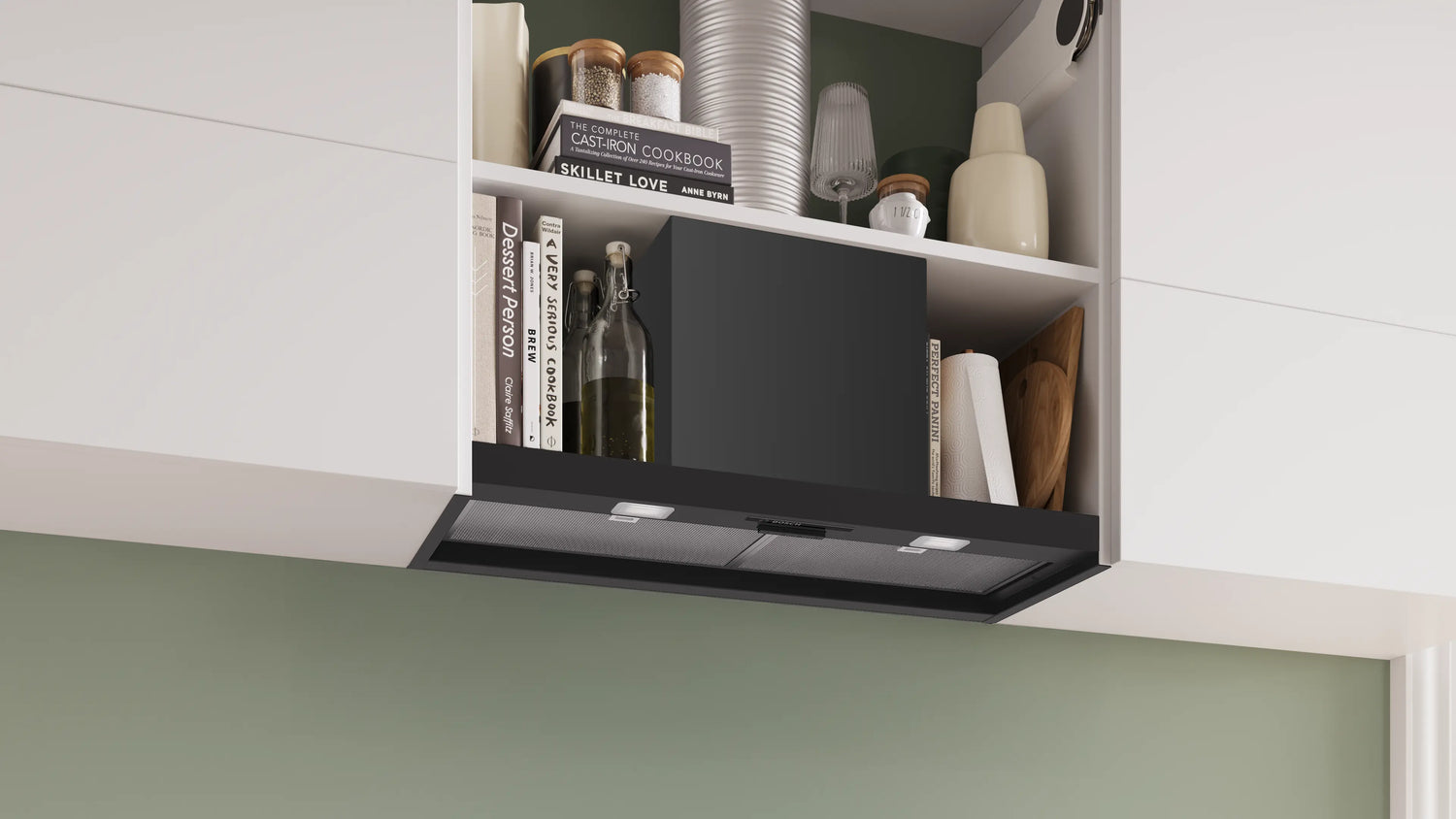

Maximum Storage Space
Maximise your kitchen's potential with our Integrated Design Hood. Featuring a T-shaped design, it offers extra storage space for up to 20kg load capacity—10 kg on each side. Enjoy fresh air and keep your items within easy reach, without sacrificing valuable cabinet space.

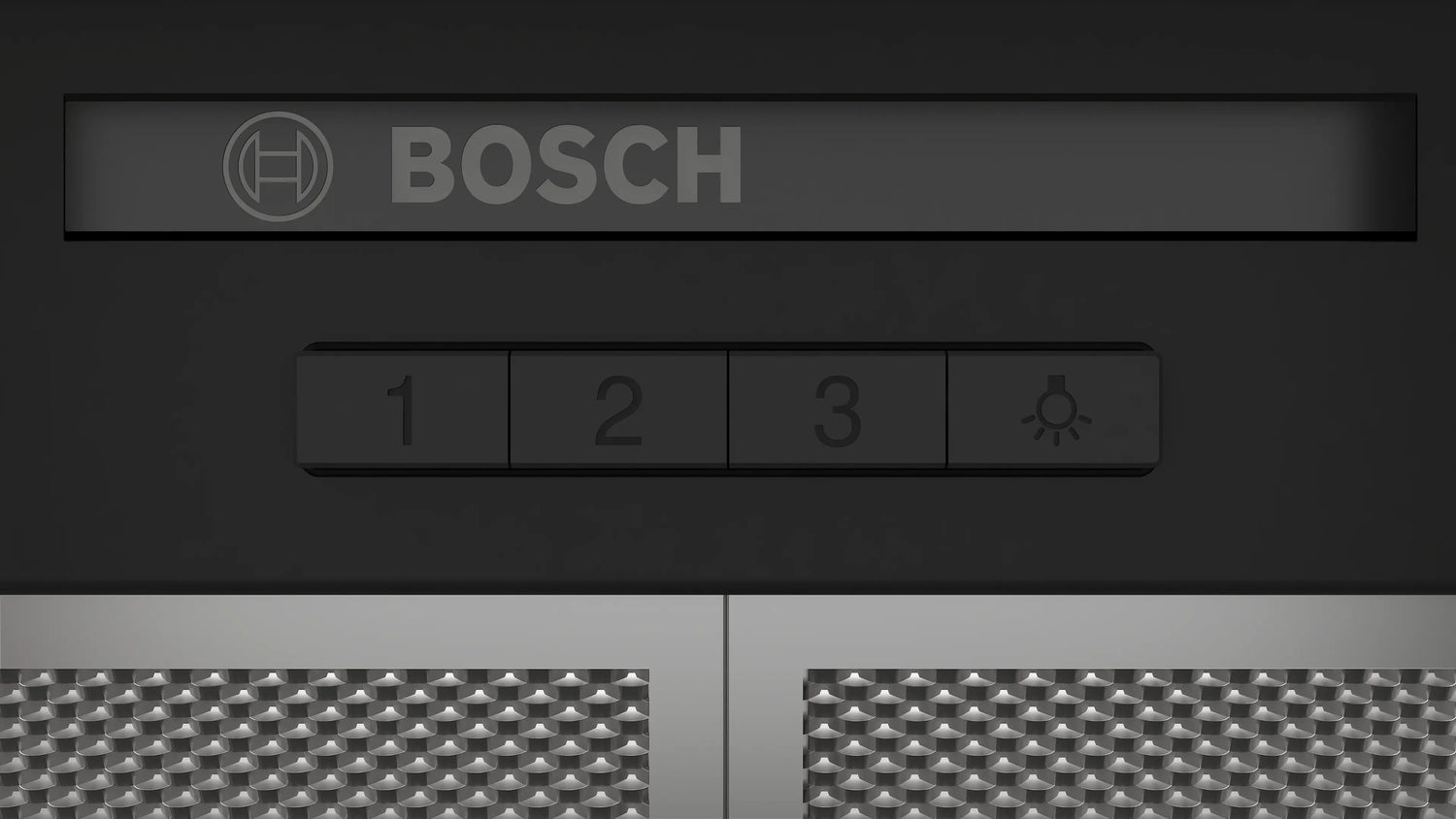

Push button control

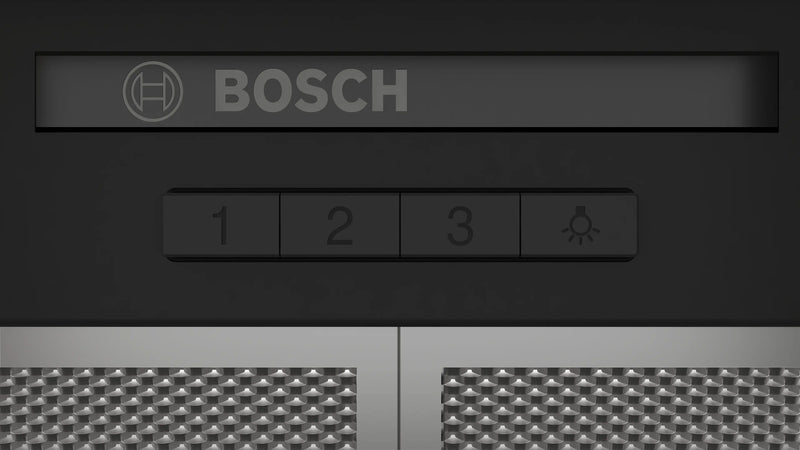

With push buttons on your hood, you can easily adjust the settings without taking your eyes off your cooking. It's not just about controlling the hood, it's about making your cooking journey seamless and enjoyable.

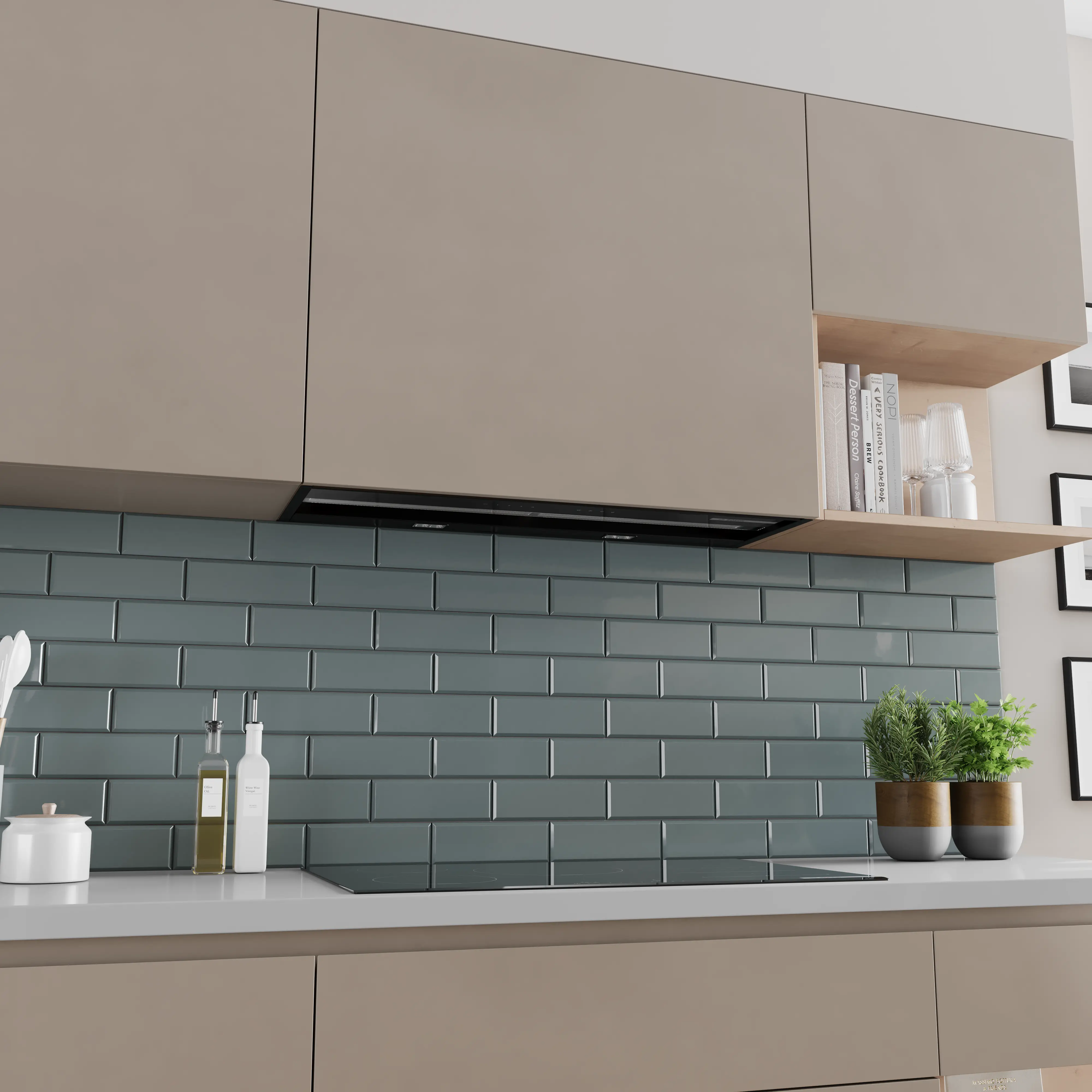

Seamless integration

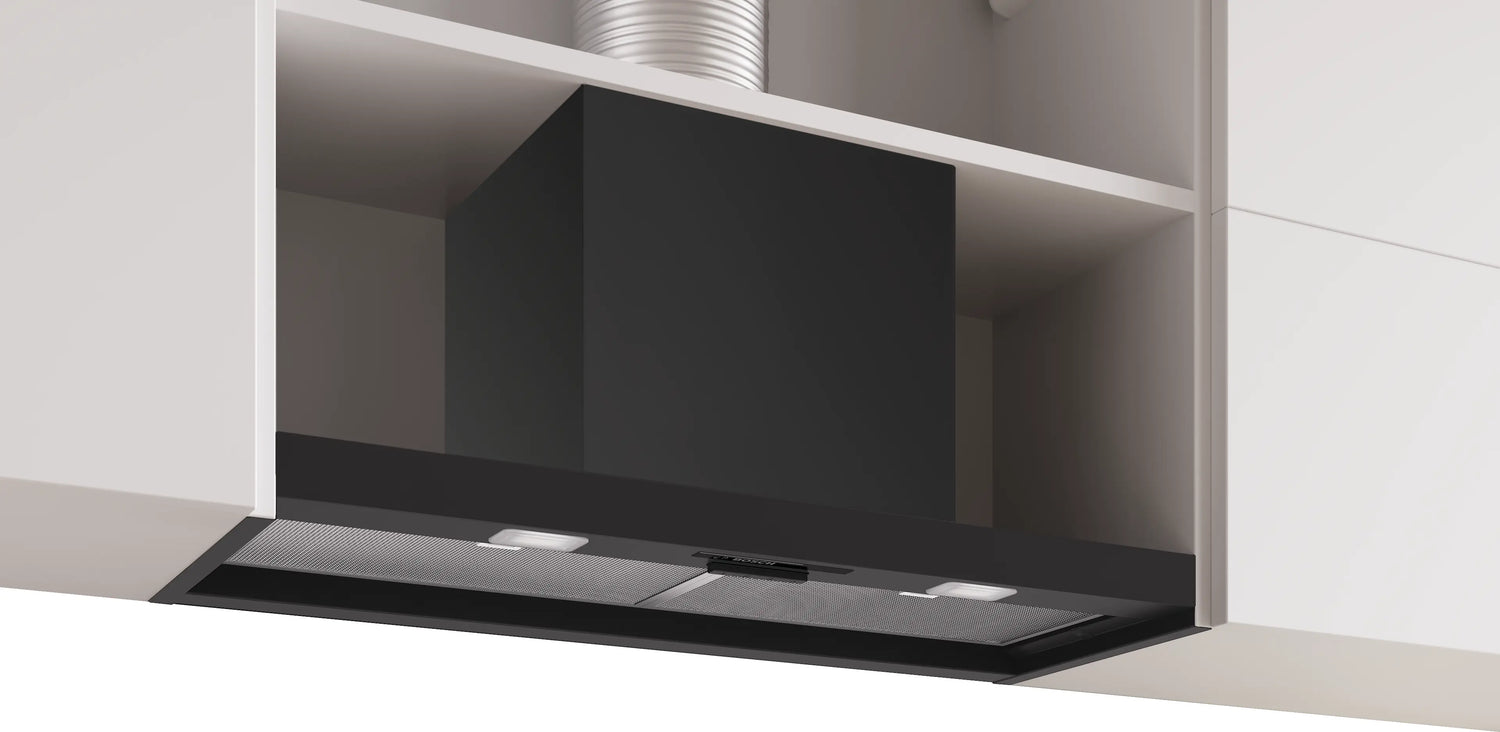

Want a clean, minimalist kitchen? Our Integrated Design Hood offers seamless integration, blending perfectly into your space with flush installation in an upper cabinet.
Maximum Storage Space
Push button control
Seamless integration
Key Points From Manufacturer
Design: Installation in a wall cupboard Flush-fitted installation for a seamless integration in wall cupboards. Enlarged storage space: max. 10 kg capacity on each hood side Suitable for ducted or...
- Matt Design: elegant carbon black matt finish with reduced fingerprint visibility.
- Maximum storage space: the T-shaped design offers lots of space and up to 20kg load capacity.
- Quiet extraction with powerful performance
- Push button control: simple and convenient adjustment of your hood settings.
- Seamless integration: flush-mounted installation for a sleek, almost invisible appearance.
General
| Manufacture name | Bosch |
| Colour Name | Black |
| Category name | Cooking > Hoods > Integrated Hoods |
| Consumer item width | 760 mm |
| Consumer item height | 340 mm |
| Consumer item depth | 287 mm |
Key Features
Defrost Type
Capacity
Efficiency
| Energy Efficiency Class | D |
| Noise Level | 65 dB |
Programmes
More
Design:
- Installation in a wall cupboard
- Flush-fitted installation for a seamless integration in wall cupboards.
- Enlarged storage space: max. 10 kg capacity on each hood side
- Suitable for ducted or recirculating operation
- Shaded-pole motor
- 2 x LED 1.5W
- Colour Temperature: 3500 K
- Light Intensity: 290 lux

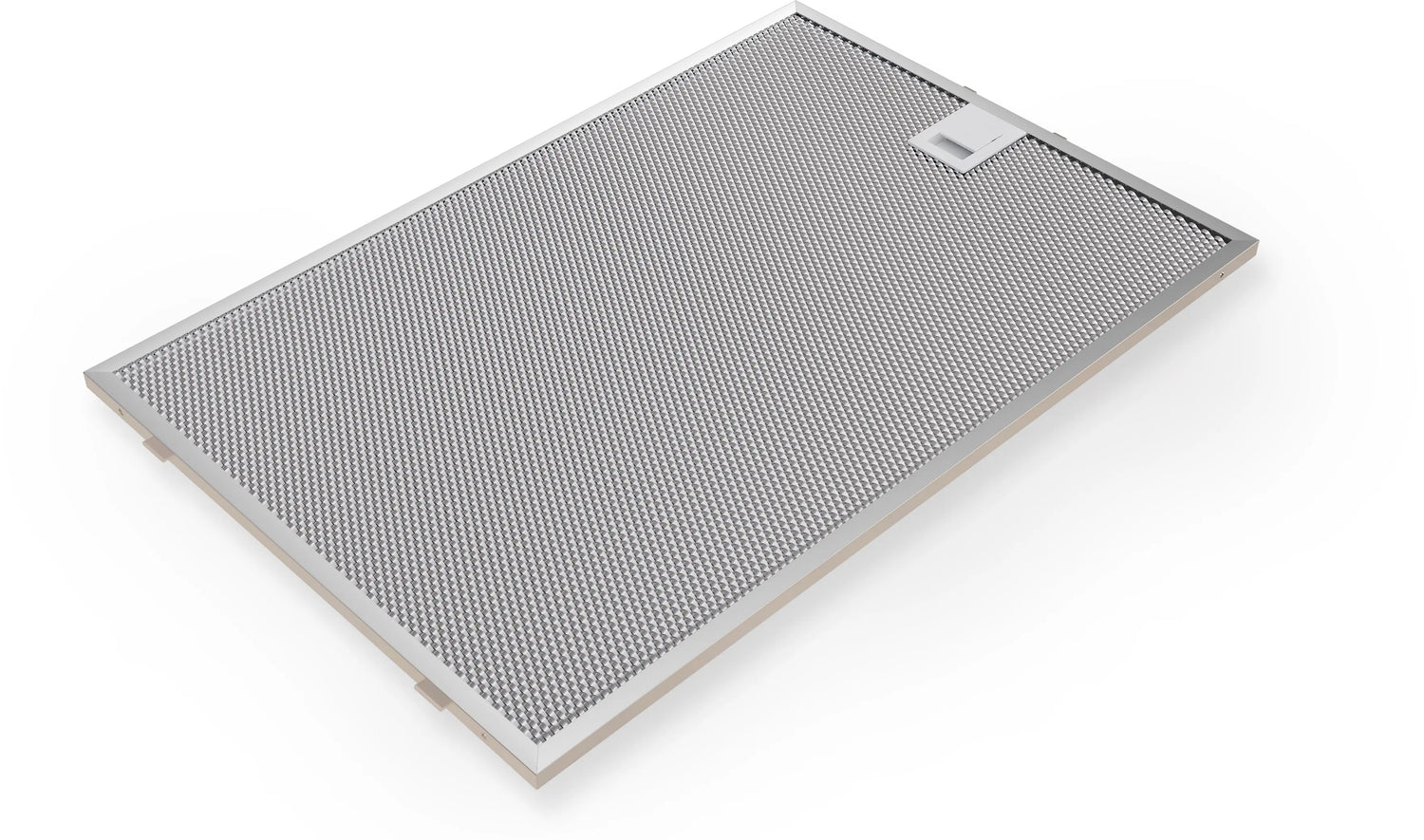

- 2 metal grease filter(s).
- Cupboard protection: additional side and rear protection against vapour
- Push button control for extractor speeds and light
- 3 power levels
- Easy to clean smooth surfaces and materials.
- Removable metal grease filters dishwasher-safe
- Coated surfaces for less fingerprint sensitivity
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode:
- Speed 1: extraction rate 174 m3/h; noise level 49 dB(A) re1pW
- Speed 2: extraction rate 246 m3/h; noise level 57 dB(A) re1pW
- Speed 3: extraction rate 384 m3/h; noise level 65 dB (A) re1pW

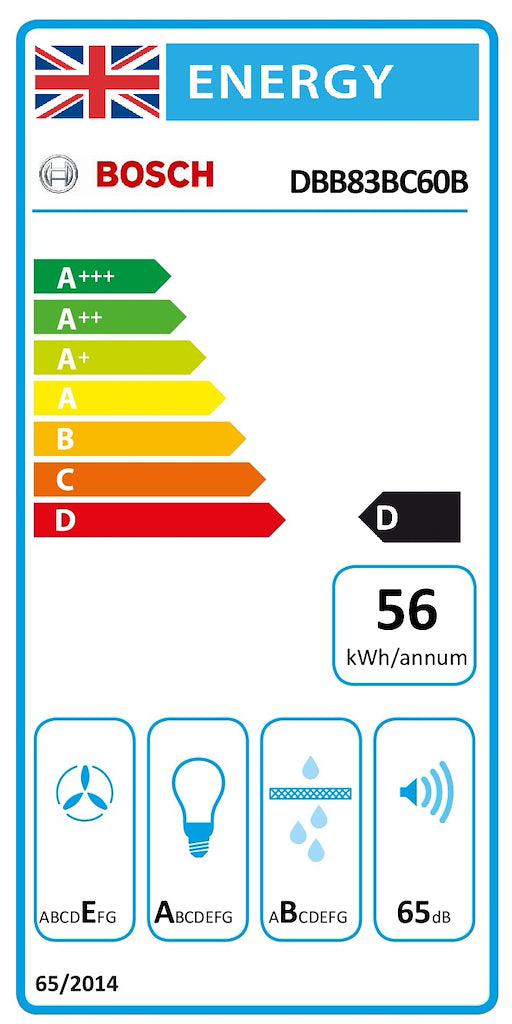

- Energy Efficiency Class: D (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 56.1 kWh/year*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- For recirculation operation Long-life Clean Air recirculation kit (accessory) needed
- The Long-life Clean Air odour filter absorbs intense odours, such as fish, as well as pollen. The lifetime can be extended up to 4 times by refreshing the filter in the oven
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Long-life Clean Air recirculation kit (available as optional accessory):
- Speed 1: extraction rate 140 m3/h; noise level 49 dB(A) re1pW
- Speed 2: extraction rate 212 m3/h; noise level 59 dB(A) re1pW
- Speed 3: extraction rate 291 m3/h; noise level 66 dB (A) re1pW
- Consumption data:
- Power rating: 100 W
- Voltage: Nominal voltage: 220 - 240 V
- Sustainability:
- Made in Germany: produced at a CO2 neutral production site
- Environmentally friendly packaging
- Available Long-life Clean Air odour filter with extended lifetime up to 4 times
- Installation: Cupboard 80 cm
- Installation system: IDH comfort installation
- Appliance dimensions (HxWxD): 340 x 798 x 298 mm
- Built-in dimensions (HxWxD): min. 340 mm x 760 mm x min. 300 mm
- Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.

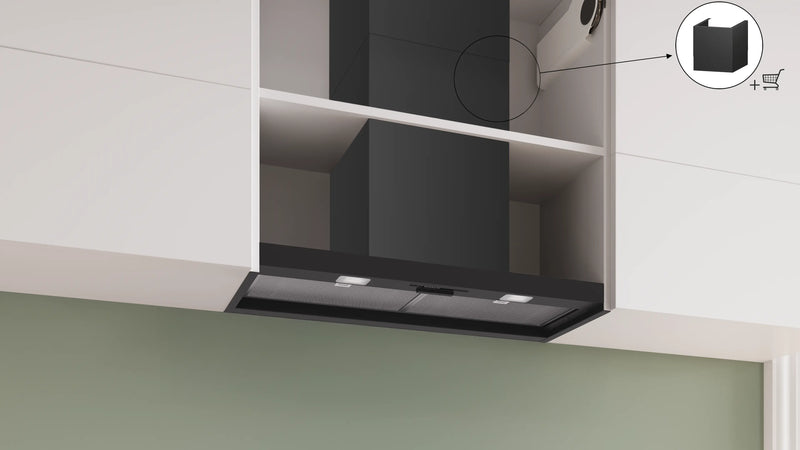

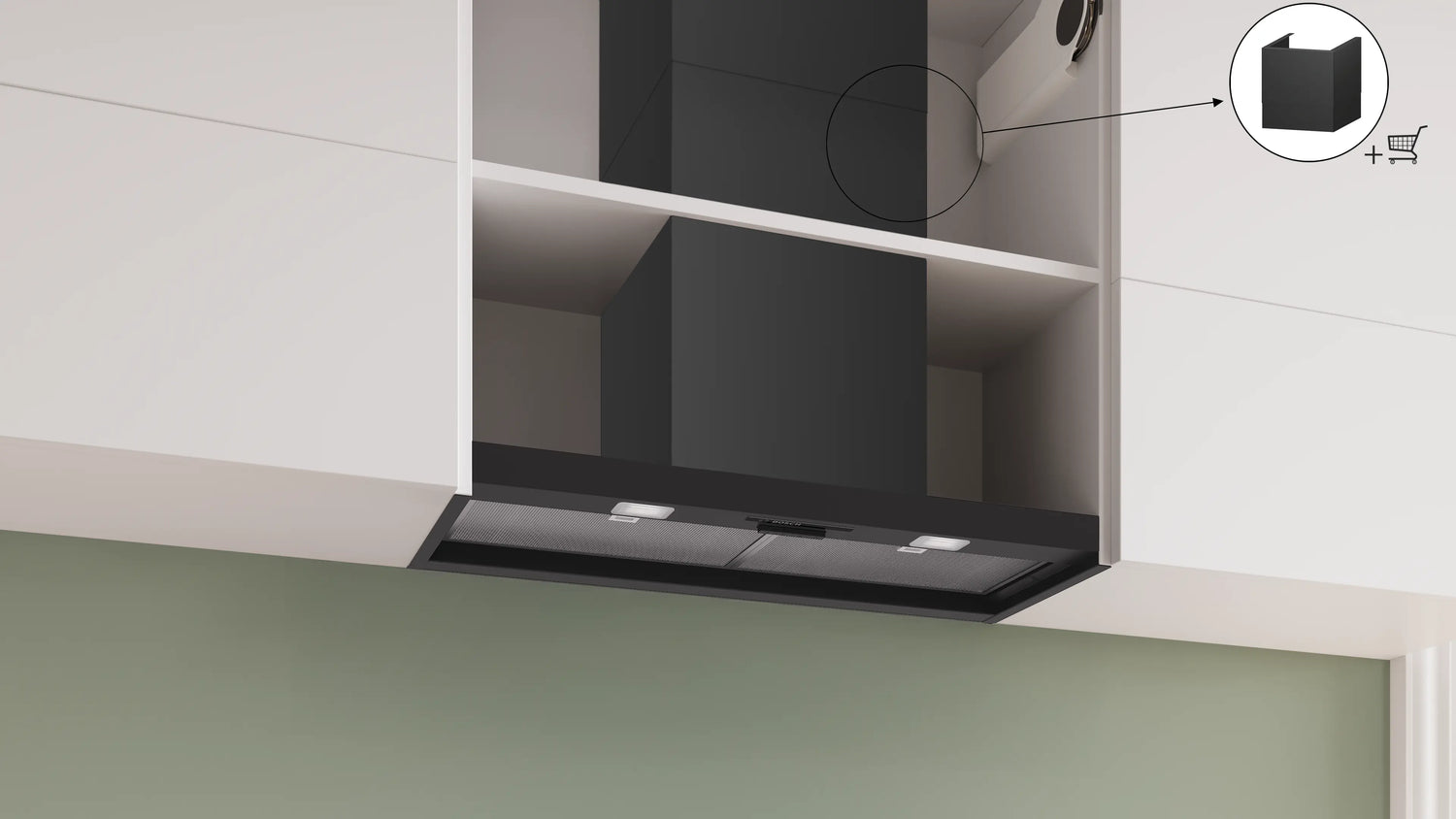

- For installation in higher wall cupboards chimney extensions are available as optional accessories.
- Diameter pipe Ø 150 mm
- Electrical cable length 1.3 m
