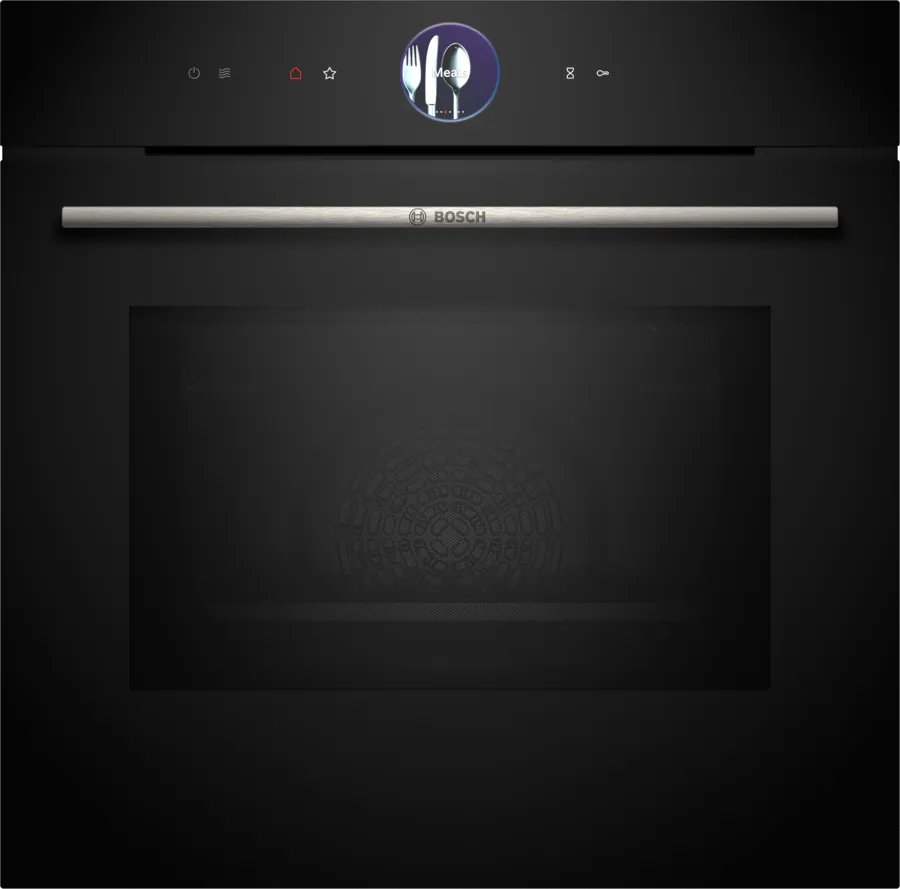

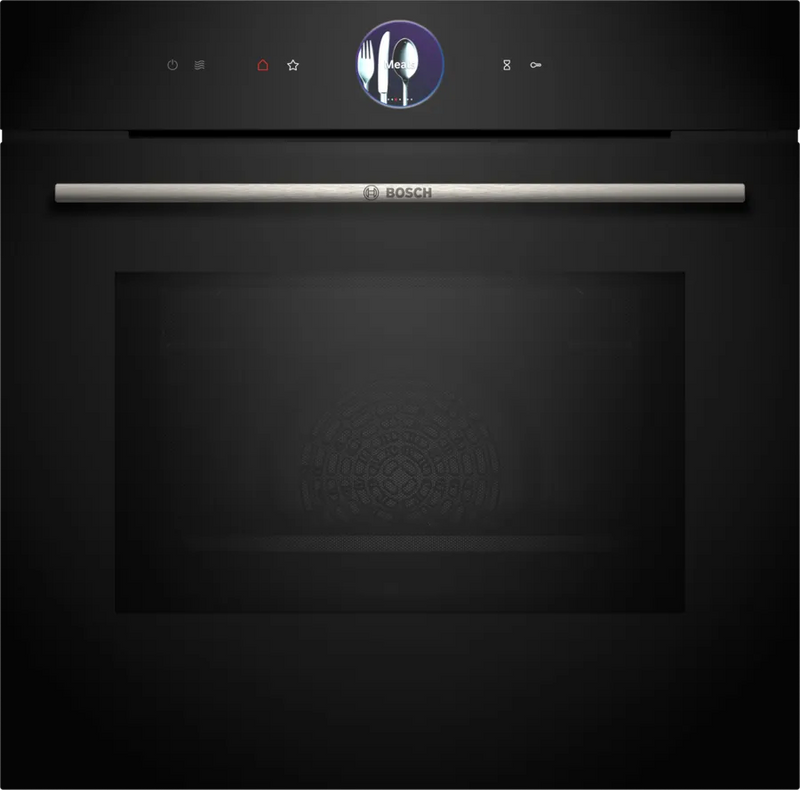

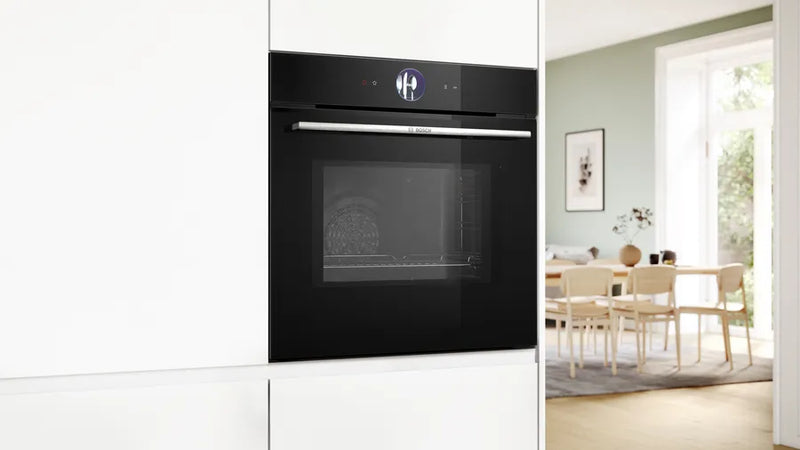

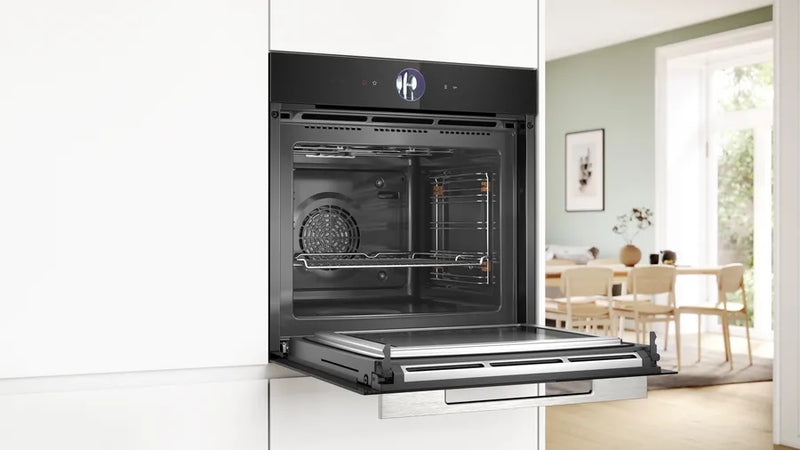

Bosch Series 8 HMG7764B1B, Built-in oven with microwave function
Available to Order
2 Year Warranty
Key Features
- Colour: Black
- Fuel type: Electric
- Capacity: 67
- Cleaning function: Heating element
- Dimensions: W:594.0 H:595.0 D:548.0 mm

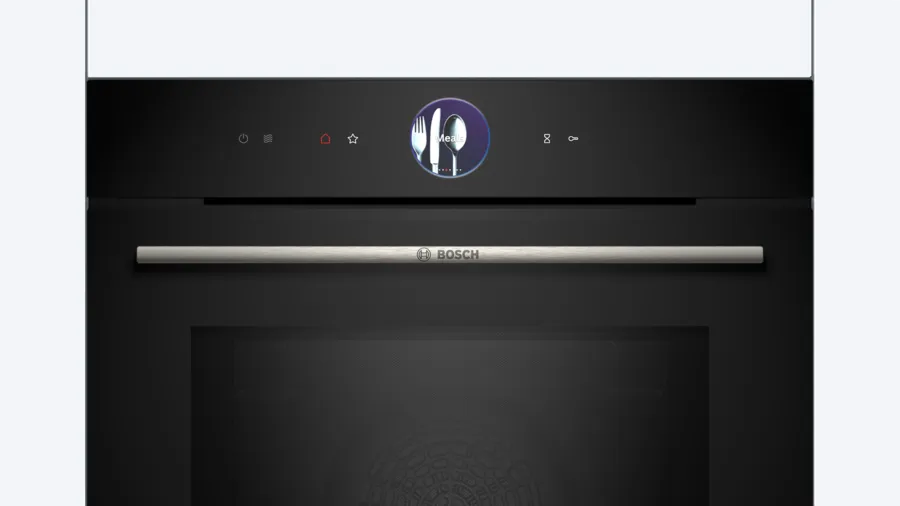

Digital Control Ring
With the Digital Control Ring, you can easily adjust oven settings directly on the control panel. Simply move your finger across the ring engraved on the control panel and press to confirm the setting you want to use.
TFT Touch Display Pro
The display is a high resolution, plain text touchscreen with selectable buttons. Clear images and texts assist you to navigate the program options. This gives you a complete overview and control over the functions of your ovens.
Pyrolytic Self-Cleaning
The Pyrolytic Self Cleaning function heats your oven up to 480°C, burning away grease or food residue. Simply wipe away the ash residue and your oven is clean. Now you can enjoy your meals without the dread of cleaning up.
HotAir Gentle
The HotAir Gentle function has improved the most commonly used heating mode. The fan distributes the heat evenly throughout the oven. This can help save energy.
Automatic Switch-Off
The assist function automatically switches off your oven when your program is finished. The oven knows when a dish is ready and informs you via a signal or through the Home Connect app.
Cleaning Assistance
Small stains in your oven that you want to remove quickly? Just place roughly 400ml of water with a drop of washing up liquid in the base pan then set the bottom heat function at 80°C for 4 minutes. This will allow you to easily wipe off baked-on residues.
4D HotAir
4D HotAir distributes heat evenly throughout the oven interior. You can place your tray on any level from one to four, the oven will cook your dishes evenly. This lets you bake or cook on all 4 levels at the same time with consistent results throughout the oven.
Assist Function
The Assist function makes it easier than ever for you to cook your dishes. Simply select the dish you are making in the control panel and your oven does the rest. The temperature and preparation time are all set automatically.
Digital Control Ring
TFT Touch Display Pro
Pyrolytic Self-Cleaning
HotAir Gentle
Automatic Switch-Off
Cleaning Assistance
4D HotAir
Assist Function
Key Points From Manufacturer
Features Oven with microwave with 20 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm,...
- Digital Control Ring: simple and intuitive oven control.
- TFT Touch Display Plus: intuitive control with the Digital Control Ring and enlarged TFT touchscreen
- Home Connect with Remote Control and Monitoring: discover the full potential of your smart oven.
- Pyrolytic self-cleaning: automatic oven cleaning, with wipe-away ash.
- Hotair Gentle: saves energy while baking and roasting.
General
| Manufacture name | Bosch |
| Colour Name | Black |
| Category name | Cooking > Ovens > Combi Ovens |
| Consumer item width | 594 mm |
| Consumer item height | 595 mm |
| Consumer item depth | 548 mm |
Key Features
| Cooker/Oven Type | Multifunction |
| Cooker/Oven Control Panel | TFT |
| Cooker/Oven Control Panel Location | Top panel |
| Cooker/Oven Timer Control | Electronic |
| Grill Type | Electric |
| Fuel Type | Electric |
| Integrated Cleaning System | Heating element |
| Number of Cooking Programs | 5.0 |
| Door Hinge Type | Drop down |
Defrost Type
Capacity
| Number of Cooking Compartments | 1 |
| Compartment Capacity 1 | 67 L |
Efficiency
Programmes
More
Features
- Oven with microwave with 20 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, Microwave, 4D Hot air, Conventional heat, Full width grill, Half width grill, Hot air grilling
- Max. Power: 800 W; 5 Microwave power settings (90 W,180 W,360 W,600 W, boost) with Inverter (MW)
- Intelligent microwave inverter technology: For optimised results maximum output power will be regulated to 600 W when used in longer operation for gentler cooking.
- Temperature range 30 °C - 230 °C
- Cavity volume: 67 litres
- 5 shelf positions
- Touch controls
- Digital Control Ring
- Cavity inner surface: enamel anthracite
- Pyrolytic self-cleaning function
- hydrolyse program
- Oven Assistant with Voice Control
- BE62
- Electronic clock timer
- Digital temperature display with proposal
- Actual temperature display Heating-up indicator Temperature probe
- Drop down door, SoftClose, SoftOpen
- BoschAssist
- yes
- yes
- Fast pre-heating function
- LED light, Light on/off when oven door opened/closed
- Integral cooling fan
- Home Connect ready

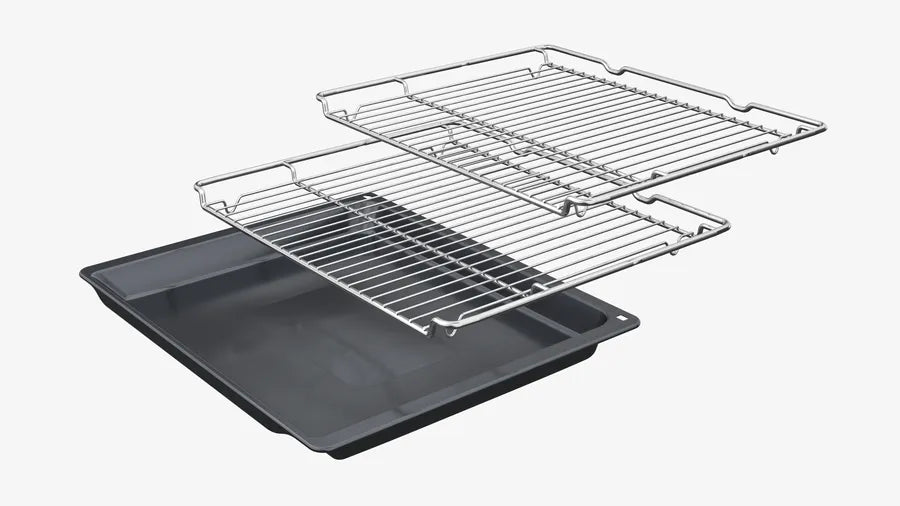

- 2 x combination grid, 1 x universal pan
- Maximum window temperature 30° C
- Quadruple glazed door with heat reflective glass glazed CoolTouch door
- Electronic door lock
- Control panel lock Automatic safety switch off Residual heat indicator Start button Door contact switch
- 120 cm Cable length
- Nominal voltage: 220 - 240 V
- Total connected load electric: 3.6 KW

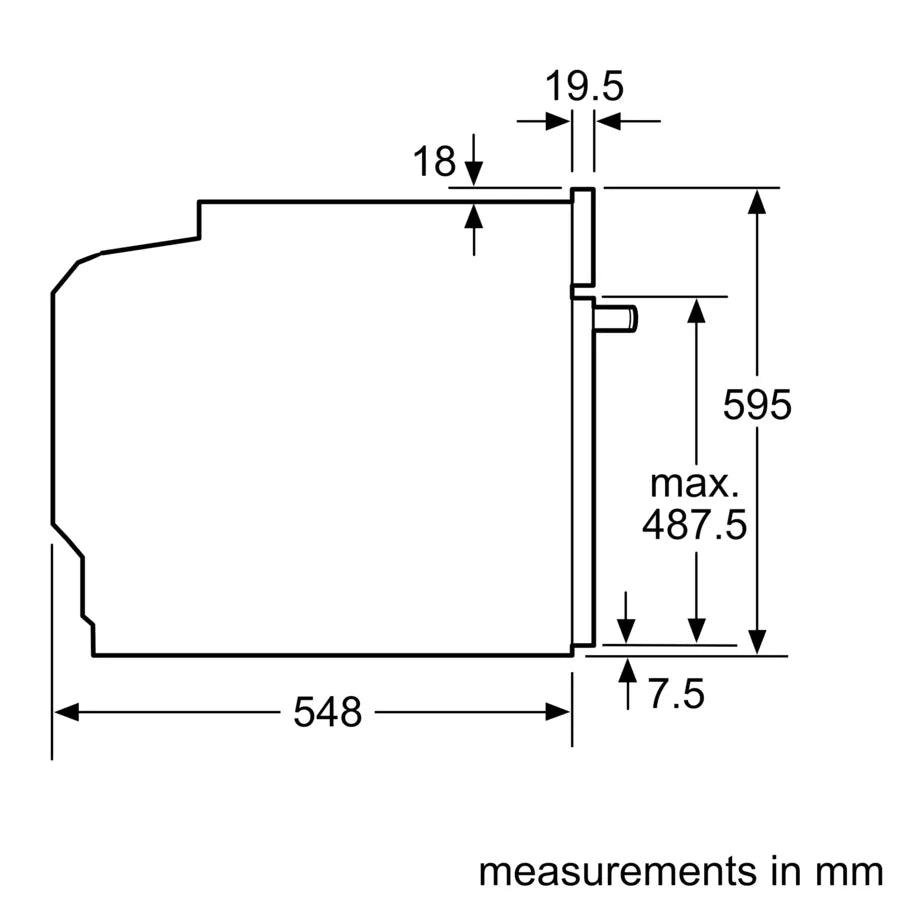

- Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm

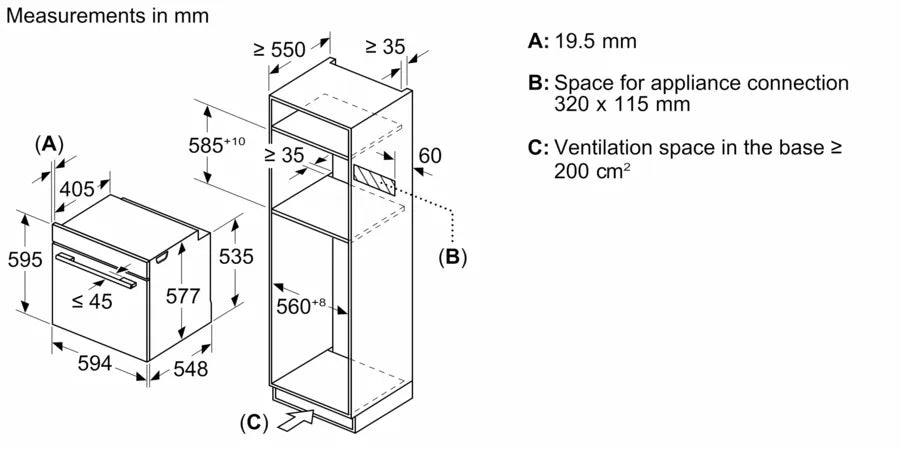

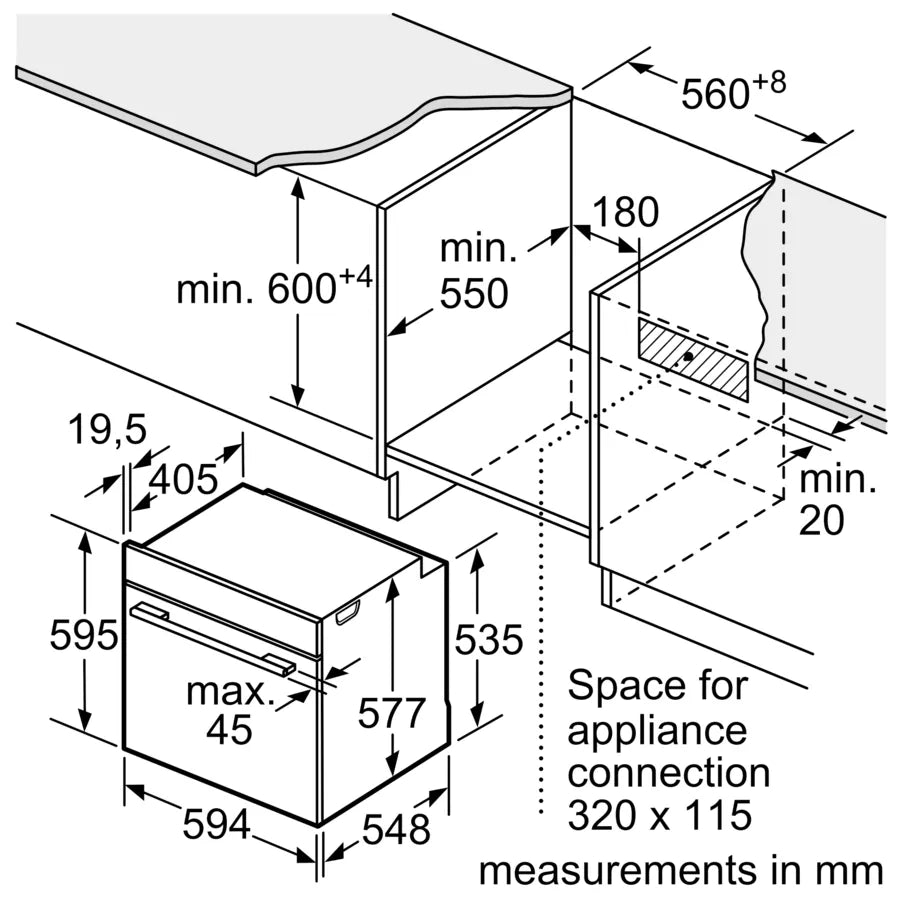

- Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
- Please refer to the dimensions provided in the installation manual
