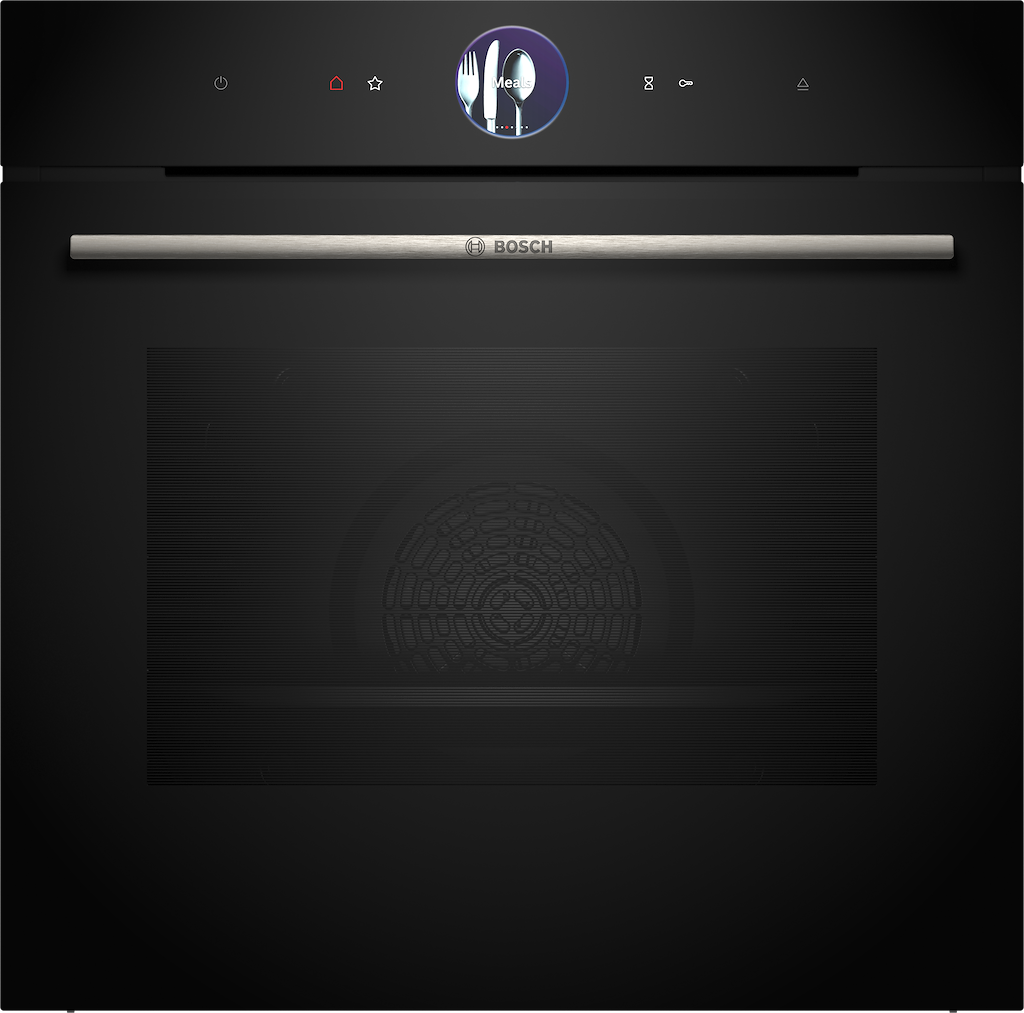

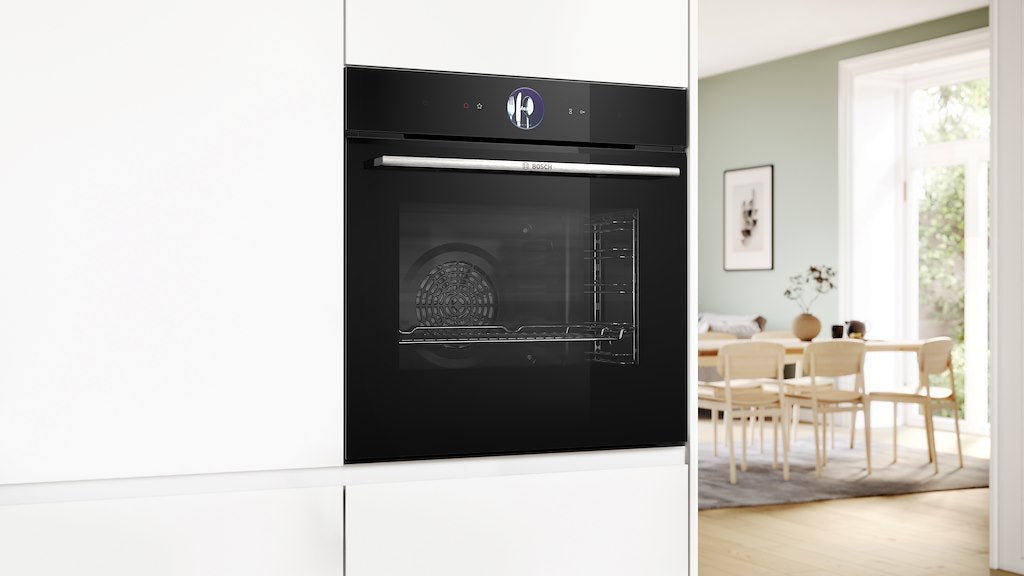

Bosch Series 8 HRG7764B1B, Built-in oven with added steam function
Available to Order
2 Year Warranty
Key Features
- Colour: Black
- Energy rating: A+
- Fuel type: Electric
- Capacity: 71
- Cleaning function: Pyrolytic+Hydrolytic
- Dimensions: W:594.0 H:595.0 D:548.0 mm

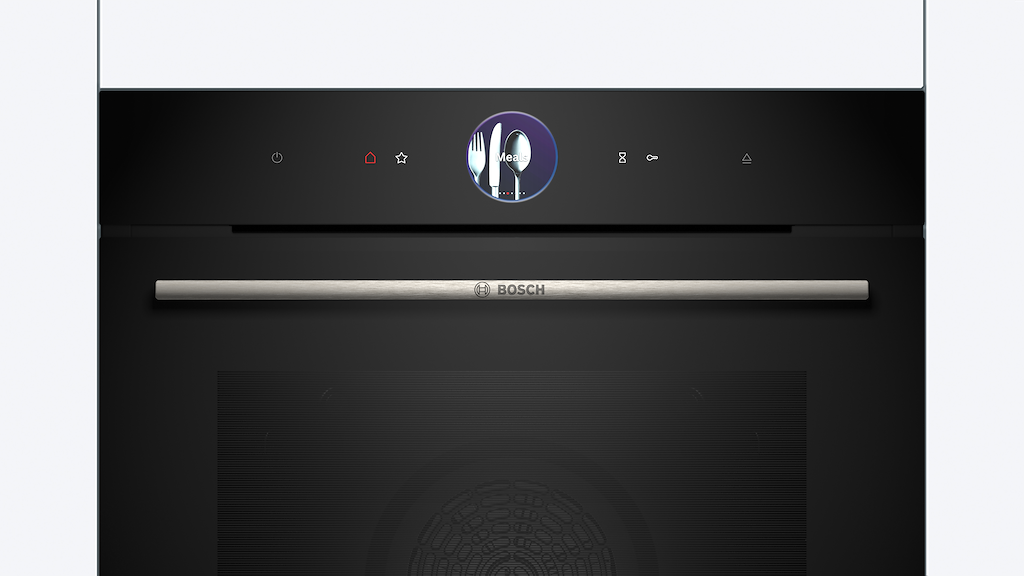

Digital Control Ring
With the Digital Control Ring, you can easily adjust oven settings directly on the control panel. Simply move your finger across the ring engraved on the control panel and press to confirm the setting you want to use.
TFT Touch Display Pro
The display is a high resolution, plain text touchscreen with selectable buttons. Clear images and texts assist you to navigate the program options. This gives you a complete overview and control over the functions of your ovens.
Automatic Switch-Off
The assist function automatically switches off your oven when your program is finished. The oven knows when a dish is ready and informs you via a signal or through the Home Connect app.
Pyrolytic Self-Cleaning
The Pyrolytic Self Cleaning function heats your oven up to 480°C, burning away grease or food residue. Simply wipe away the ash residue and your oven is clean. Now you can enjoy your meals without the dread of cleaning up.
Cleaning Assistance
Small stains in your oven that you want to remove quickly? Just place roughly 400ml of water with a drop of washing up liquid in the base pan then set the bottom heat function at 80°C for 4 minutes. This will allow you to easily wipe off baked-on residues.
Digital Control Ring
TFT Touch Display Pro
Automatic Switch-Off
Pyrolytic Self-Cleaning
Cleaning Assistance
Key Points From Manufacturer
Features Oven with 20 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat...
- Digital Control Ring: simple and intuitive oven control.
- TFT Touch Display Plus: intuitive control with the Digital Control Ring and enlarged TFT touchscreen
- Automatic Switch-off: stops cooking as soon as the dish is done.
- Pyrolytic self-cleaning: automatic oven cleaning, with wipe-away ash.
- Added Steam Function: keep food crispy on the outside and juicy on the inside.
General
| Manufacture name | Bosch |
| Colour Name | Black |
| Category name | Cooking > Ovens > Combi Ovens |
| Consumer item width | 594 mm |
| Consumer item height | 595 mm |
| Consumer item depth | 548 mm |
Key Features
| Cooker/Oven Type | Multifunction |
| Cooker/Oven Control Panel | TFT |
| Cooker/Oven Control Panel Location | Top panel |
| Cooker/Oven Timer Control | Electronic |
| Grill Type | Electric |
| Fuel Type | Electric |
| Integrated Cleaning System | Pyrolytic+Hydrolytic |
| Number of Cooking Programs | 5.0 |
| Door Hinge Type | Drop down |
Defrost Type
Capacity
| Number of Cooking Compartments | 1 |
| Compartment Capacity 1 | 71 L |
Efficiency
| Energy Efficiency Class | A+ |
Programmes
More
Features
- Oven with 20 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, reheating with steam, Dough proving, Hot air grilling, warming, 4D Hot air, Top/bottom heat
- Temperature range 30 °C - 230 °C
- Cavity volume: 71 litre capacity
- 5 shelf positions
- Available as an additional accessory, pyrolitic proof
- Touch controls
- Digital Control Ring
- Cavity inner surface: enamel anthracite
- Pyrolytic self-cleaning function
- hydrolyse program
- Full glass inner door
- Oven Assistant with Voice Control
- BE62
- Electronic clock timer
- Digital temperature display with proposal
- Actual temperature display Heating-up indicator Temperature probe

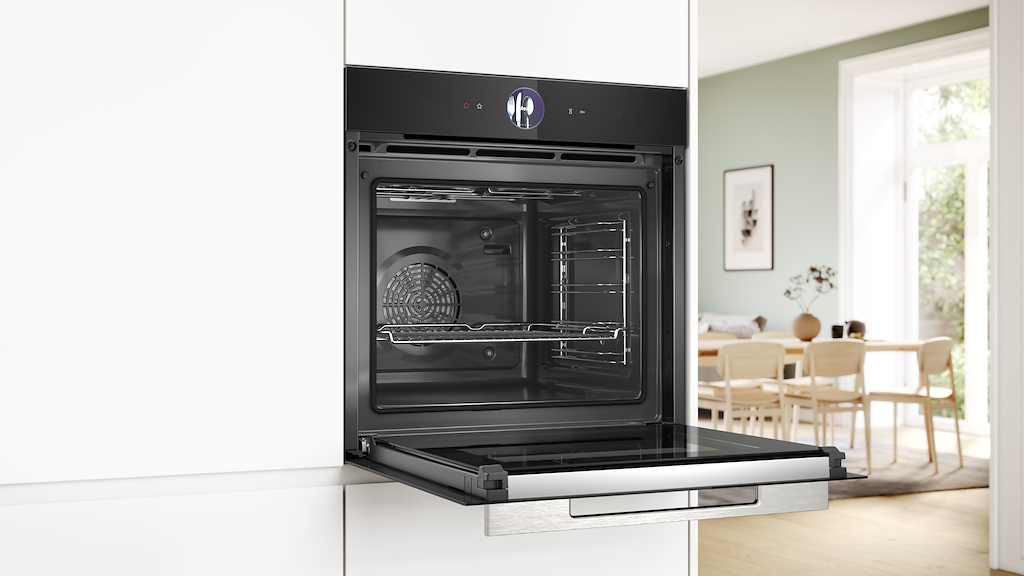

- Drop down door, SoftClose, SoftOpen
- BoschAssist
- yes
- yes
- Fast pre-heating function
- steam boost - add for 3min intensive steam with a touch of a button.
- There are different steam intensities selectable: steam level high, steam level middle, steam level low
- LED light, Light on/off when oven door opened/closed
- Water tank empty indicator

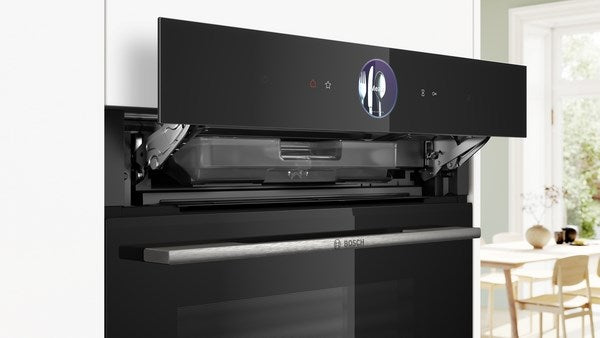

- Location of water tank: Outside cavity
- Integral cooling fan
- Home Connect ready

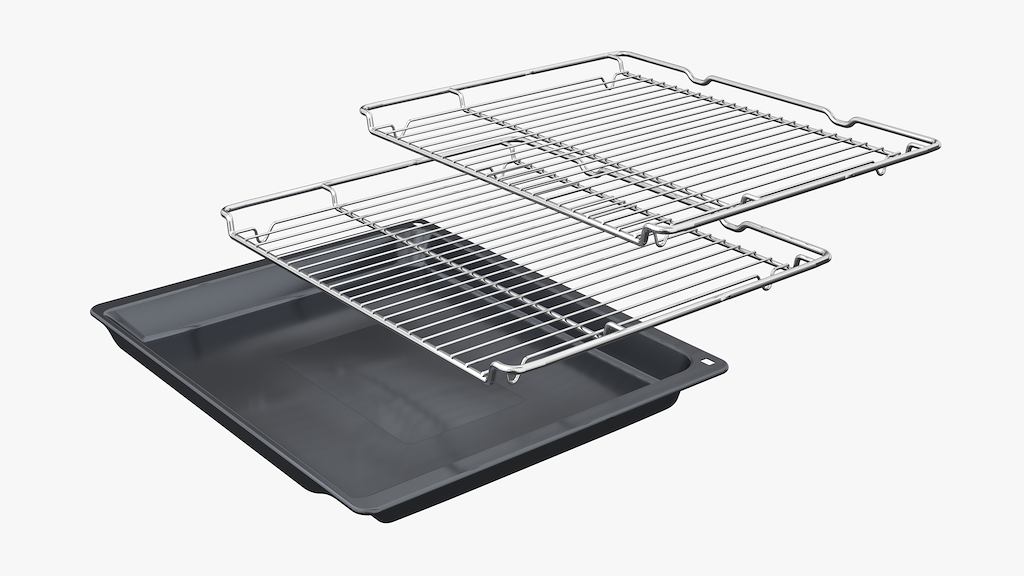

- 2 x combination grid, 1 x universal pan
- Maximum window temperature 30° C
- Low door temperature during pyrolitic cleaning
- Quadruple glazed door with heat reflective glass glazed CoolTouch door
- Electronic door lock
- Control panel lock Automatic safety switch off Residual heat indicator Start button Door contact switch
- 120 cm Cable length
- Nominal voltage: 220 - 240 V
- Total connected load electric: 3.6 KW
- Energy efficiency rating (acc. EU Nr. 65/2014): A+
- Energy consumption per cycle in conventional mode:0.87 kWh
- Energy consumption per cycle in fan-forced convection mode:0.69 kWh
- Number of cavities: Main cavity Heat source: electrical Cavity volume:71 litre capacity
- Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm

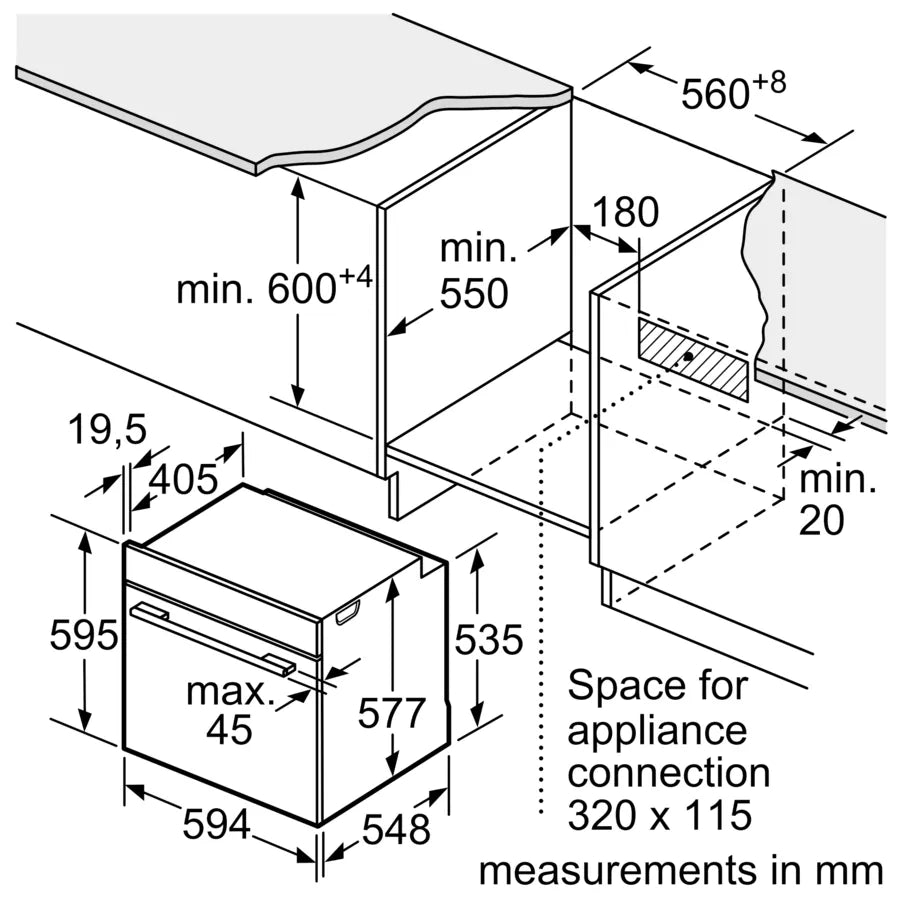

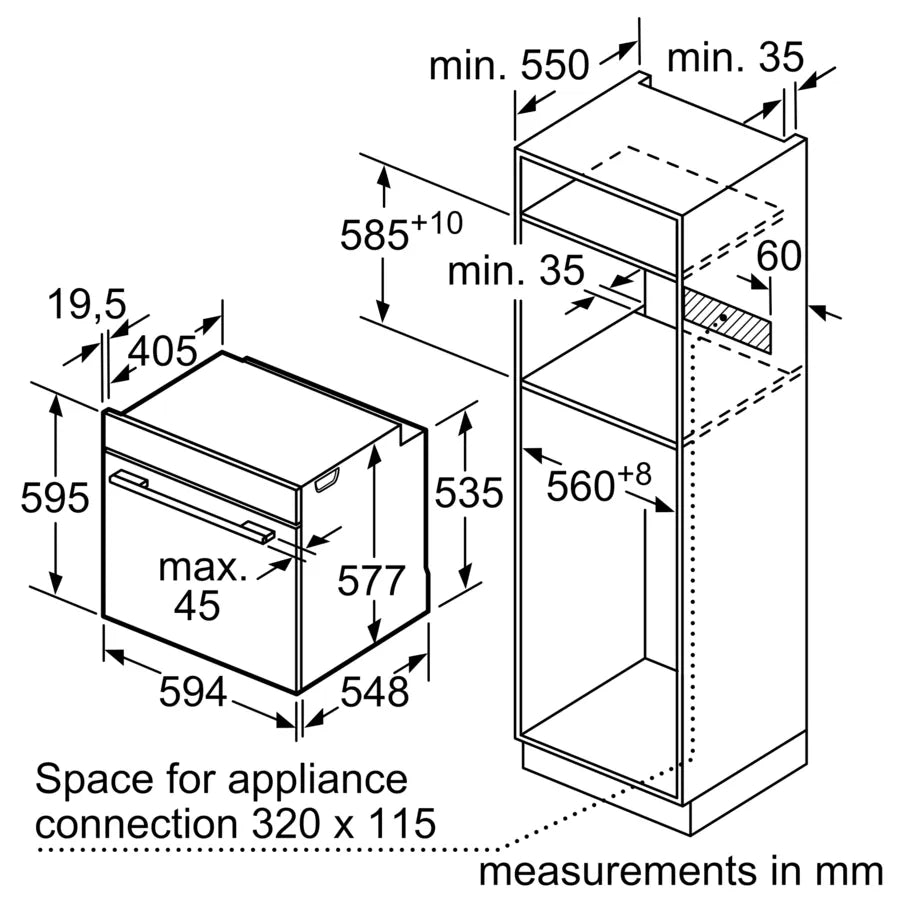

- Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
- Please refer to the dimensions provided in the installation manual
