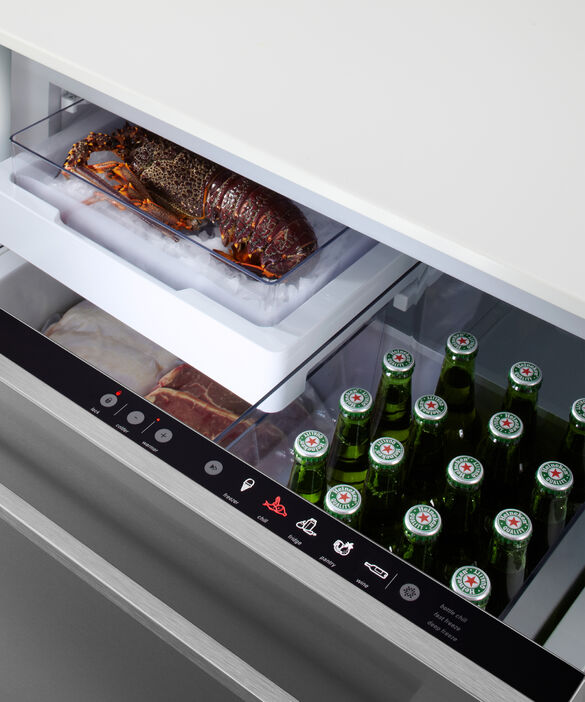

Fisher & Paykel Series 9 RB9064S1, Integrated Cool Drawer
Available to Order
5 Year Warranty
Key Features
- Energy rating: E
- Climate class: SN-T
- Split type: Single Door
- Noise level: 39
- Dimensions: W:855.0 H:640.0 D:557.0 mm

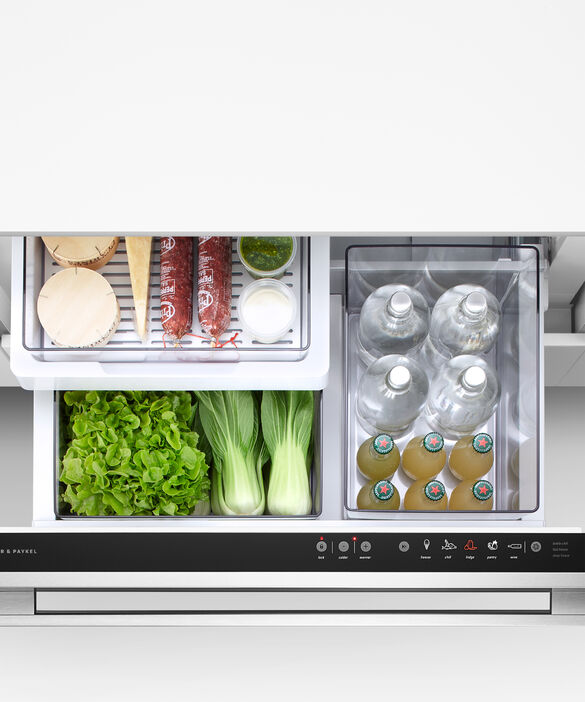

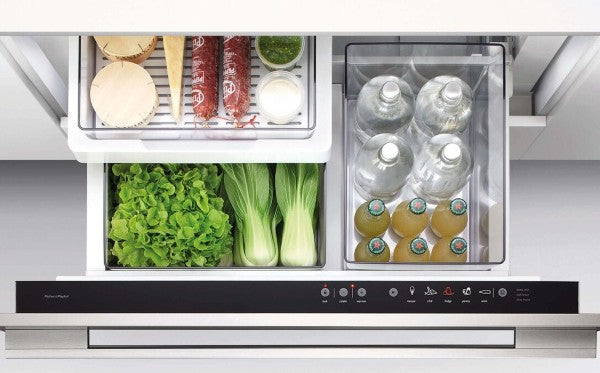

Fridge
The ideal storage for most foods such as fruit, vegetables, dairy products and drinks. The compact upper storage tray is a perfect place for sensitive foods while the tall bin is ideal for large bottles and containers.

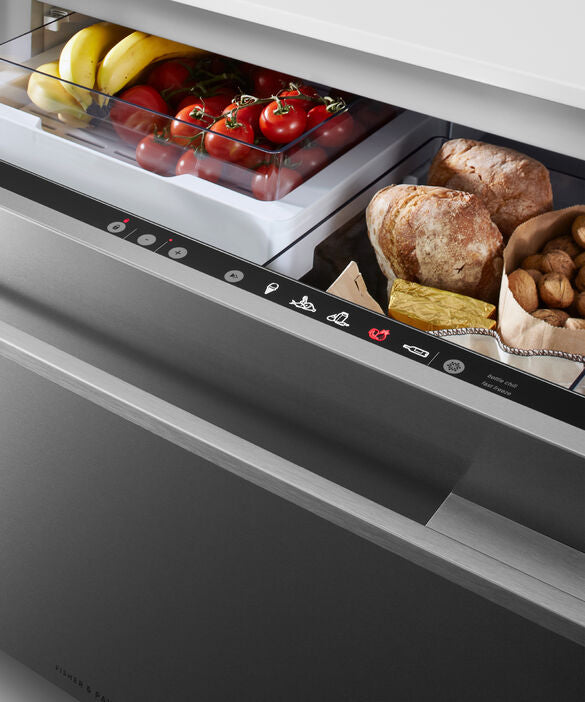

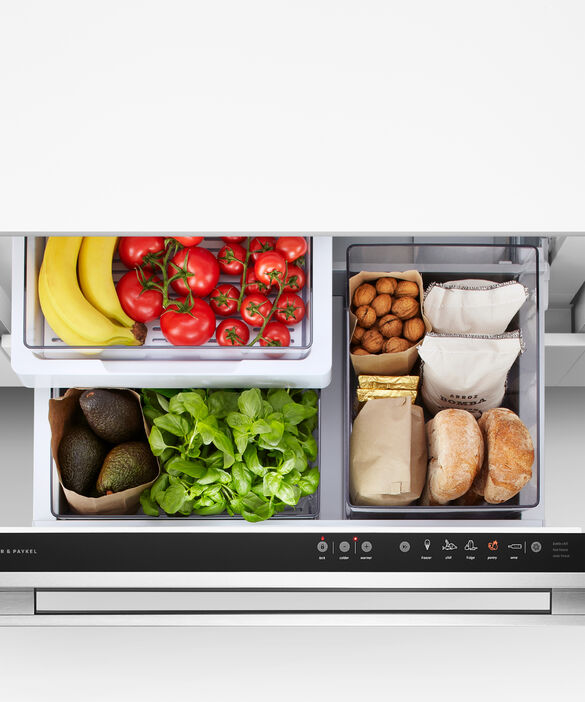

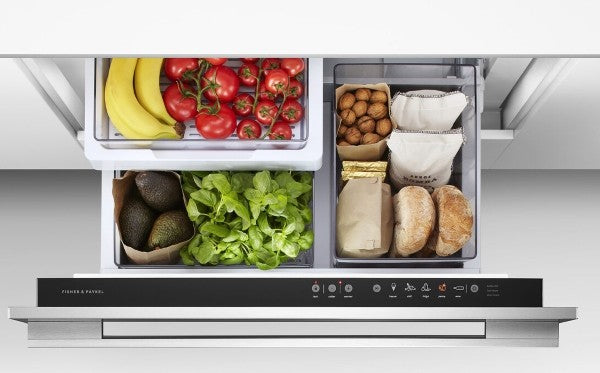

Pantry
Designed for foods that require a cool, dark place for storage such as tropical fruits, tomatoes and cereals.

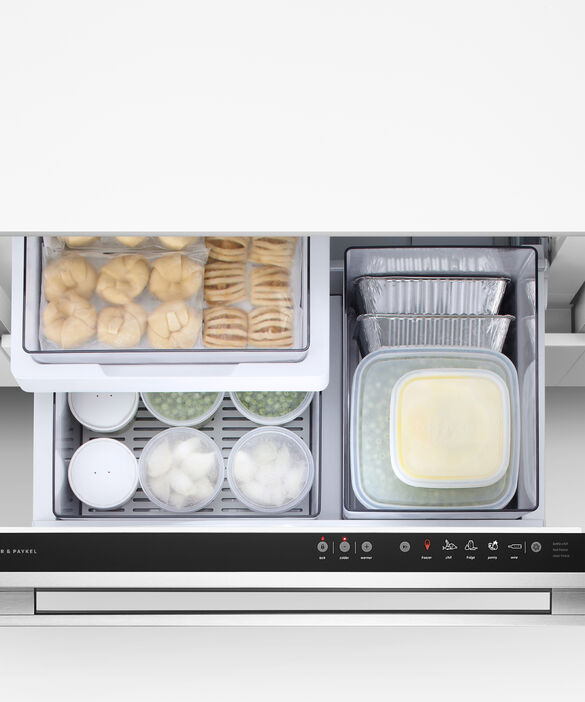

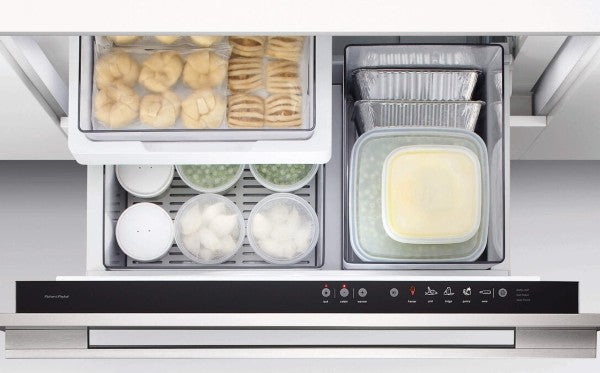

Freezer
Ideal for general frozen food storage with the added flexibility of three freezer functions - bottle chill, fast freeze and deep freeze. Freezer mode is set at -18°C for longer term storage of frozen items.

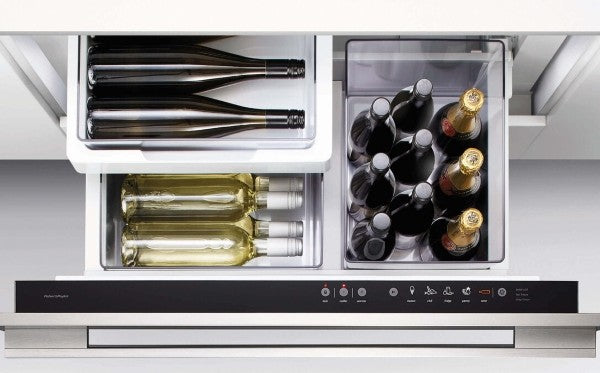

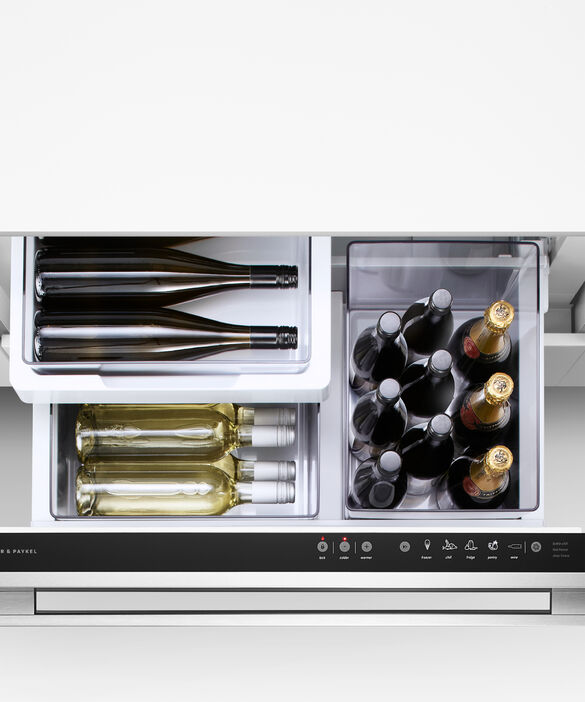

Wine
Wine Mode is ideal for long term storage of all wine at 12°C. It also offers short term storage at 7°C for white wine and 15°C for red wine.

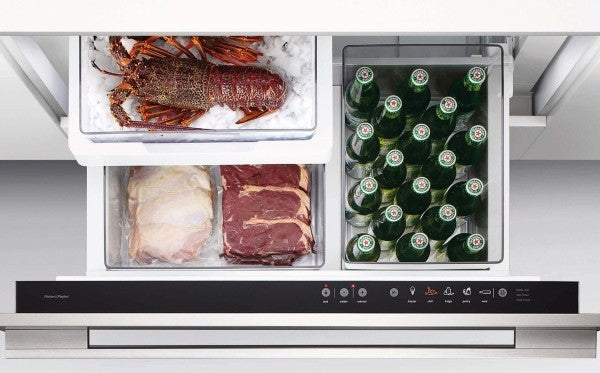

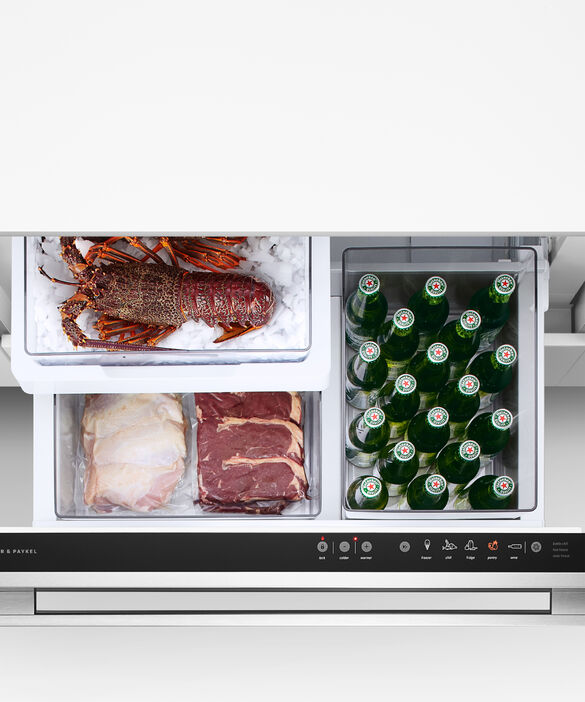

Chill
Chill Mode sets the compartment to a temperature ideal for highly perishable meats, poultry and seafood. Chill Mode sets the compartment at -0.5°C, just above the freezing temperature for meat.
Fridge
Pantry
Freezer
Wine
Chill
Key Points From Manufacturer
Accessories (sold separately) Door panel set stainless steel - RD9064S Handle kit Classic - AHCLRD90S Handle kit Contemporary round, aluminium - AHSRB90S Handle kit Contemporary square fine, aluminium - AHD5RD90S...
- Variable Temperature Zone lets you change between five different food modes – fridge, freezer, pantry, chill and wine

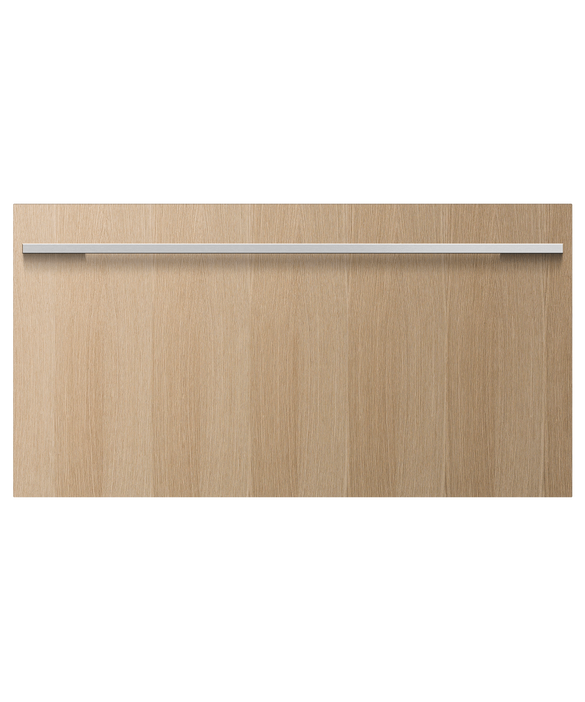

- Customise with your own kitchen cabinetry or purchase Fisher & Paykels stainless steel door panel accessory
General
| Manufacture name | Fisher & Paykel |
| Colour Name | Integrated |
| Category name | Refrigeration > Fridges > Integrated Undercounter |
| Consumer item width | 855 mm |
| Consumer item height | 640 mm |
| Consumer item depth | 557 mm |
Key Features
| Split Type | Single Door |
Defrost Type
Capacity
Efficiency
| Energy Efficiency Class | E |
| Noise Level | 39 dB |
| Climate Class | SN-T |
Programmes
More
Accessories (sold separately)

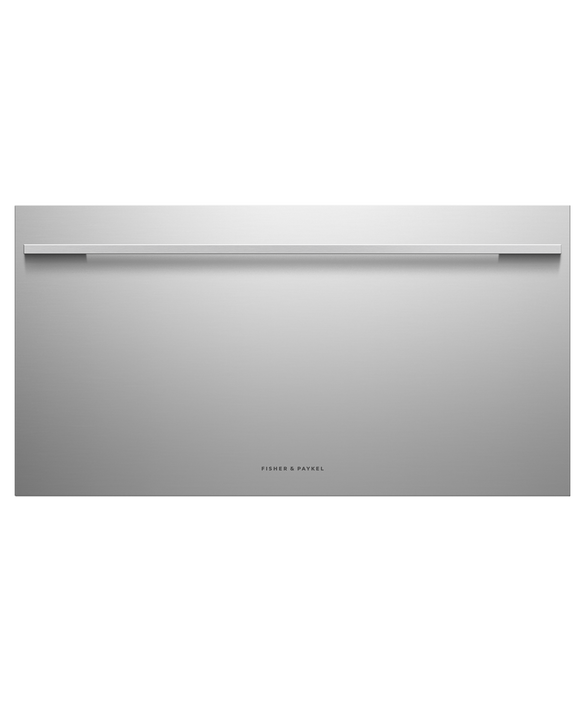

- Door panel set stainless steel - RD9064S
- Handle kit Classic - AHCLRD90S
- Handle kit Contemporary round, aluminium - AHSRB90S
- Handle kit Contemporary square fine, aluminium - AHD5RD90S
- Handle kit Contemporary square fine, black - AHD5RD90SB
Capacity
- Volume - 104L
Consumption
- Energy rating - E
- Energy usage - 82kWh/year (refrigerator mode), 197kWh/year (freezer mode)
- In-use energy carbon emissions estimate - 15.9kgCO2e/year (refrigerator mode), 38.2kgCO2e/year (freezer mode)
Features
- Door alarm
- Full extension runners
- LED lighting
- SmartTouch control panel
- Spill proof removable bins
- Variable temperature control
Performance
- ActiveSmart™ Foodcare
- Noise emissions - 39dBA
- Noise emissions class - C
- Quiet mark certified
Power requirements
- Rated current - 10A
- Supply frequency - 50Hz
- Supply voltage - 230V
Product dimensions
- Depth - 557mm
- Height - 640mm
- Width - 855mm
